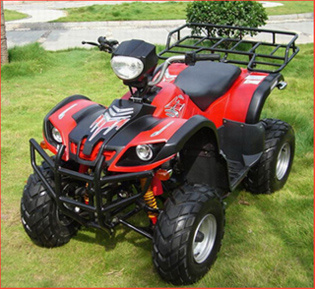

New Design 110cc or 150cc Quad (HN-ATV05)

Specifications

Prod Model:	HN-ATV05

Product Description

Product information
Hn-atv05 fob ningbo/shanghai
Engine:
Engine type(gy6) single cylinder, 4 stroke, air-cooled
Engine displacement(ml) 107
Bore x stroke(mm) 52.4*49.5
Max power (kw/(r/min)) 6/8000
Max torque(n. M/r/min) 7/6000
Compression ratio 9.0: 1
Lubrication oil capacity(l) 0.9
Minimum fuel
Comsumption (g/kw. H)
365
Transmission:
Start mode electrical
Transmission mode chain
Brake mode(front/rear) drum/disc
Front hanging: Double arm -swing
Rear hanging: Integral
Brake distance(m/30km) 7
Shift speed tpye four gear with reverse gear (3-2-1-n-r)
Clutch mode auto clutch
External condition:
Length x width x height(mm): 1760*970*1060
Minimum turning radius(mm): 3000
Climbing degree: 30
Lamp: Head lamp
Seat height(mm): 800
Wheel base(mm): 1110
Front track(mm): 760
Rera track(mm): 680
Minimum ground clearance(mm): 150
Top speed(km/h) 55
Fuel capacity(l): 7.8
Tyre dimension(front/rear) at19? 7-8/at18? 9.5-8
Battery: 12v 9a
Cover material: Pp
Color: Red/blue/white/yellow/black
Packing:
Carton dimensions: 1520 x 820 x 780mm
N. W. 135kg
G. W. 155kg
Conveyance:
Qty/20' gp 30pcs
Qty/40' gp 63pcs
Qty/40' hq 63pcs
