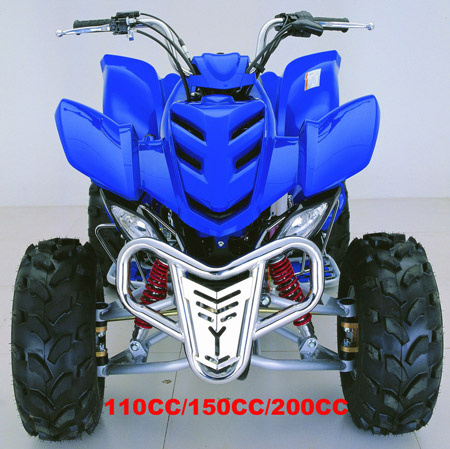

110cc, 150cc, 200cc Dinosaur Style Quad (HN-ATV03)

Specifications

Prod Model:	HN-ATV03

Product Description

Model Number: ZT-ATV003
Length * Width * Height (mm): 1550*880*980
Wheel Base(mm): 1020
Engine Type: Single Cylinder; Air-cooling; Four stroke
Start Mode: Electric
Power (Kw/r/min): 4.6/7500r/min
Max Torque (N. M/r/min): 6.5/6000r/min
Max Speed(km/h): ≥40
Mini Ground Clearance (mm): 100
Dry Weight(Kg): 135
Transmission Mode: Axis
Break Type(F/R): Drum/Drum
Specification12V9Ah
Climb Degree: ≥15deg;
Tank Capacity (L): 6.6
Front Hanging: Integral
Rear Hanging: Integral
Specification of tyre: Front-wheel drive: 197-8

Rear wheel: 189.50-8
Cylinder Diameter*Journey(mm): 52.4*49.5
Displacement (ml): 106.7
Shift Gear: Three gear. One reverse gear
Automatic clutch
Height of seats(mm): 650
Mini Turning radium(mm): 2400
Parking Trig: Mechanic Lock
Ignition Mode: CDI
Loading Capacity(kg): 125
Engine Oil (L): 0.9
Gear Wheel oil (L): 0.2
Person: 1
Lubrication: Press Splash
Compression Proportion: 9: 11
Gas Cylinder number: 1
Parking Dimension(mm): 1470*835*770
Quantity of loading: 20' GP: 31 units, 40' GP: 64 units, 40' HQ: 66 units
