Specifications
Prod Model: |
JH3655 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
5.5HP |
Gears: |
5 Forward&2 Reverse |
Chute Rotating Angle: |
190 Degree |
Cylinders: |
1 |
Engine: |
4 Stroke |
Displacement: |
200CC |

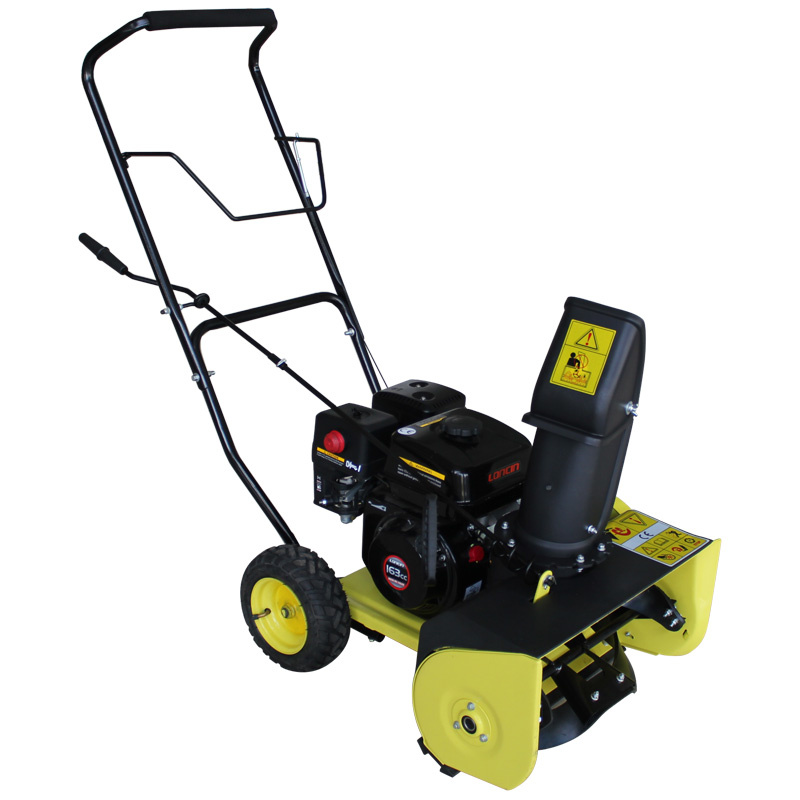

Product Description
Certificates: CE, EPA, CARB, EURO-2
Power supplier: 5.5HP(3.6Kw)
--Displacement: 118CC or 163CC
--Engine: 4 stroke, OHV, air-forced cooling, single-cylinder, gasoline
--Fuel Capacity: 3.6L
--Oil tank capacity: 0.6L
--Operational capacity per tankful (approx. ): 3.5 hrs
--Max. Working load: 1600lbs/minute (theoretical)
Max. Throwing distance: 10-15 m (theoretical)
Max. Working width: 20"(52cm)
Max. Working thickness: 11"(28cm)
Chute rotating angle: 190 Degree
Type of transmission: Belt
Type of wheels size: 8 " tyres, snow hog tubeless tyres
Starting method: Manual starter
N. W/G. W: 38/43 kg
Packing Dimension: 69 x 56 x 47 (cm)
Conveyance: 160PCS/20'GP; 320PCS/40'GP.
