Specifications
Prod Model: |

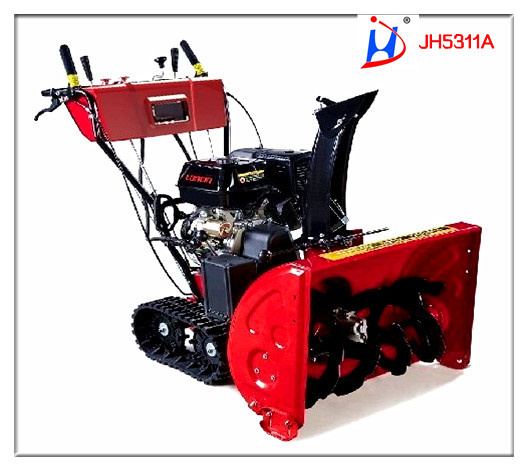

JH5311A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
11HP |
Gears: |
5 Forward&2 Reverse |
Chute Rotating Angle: |
190 Degree |
Cylinders: |
1 |
Engine: |
4 Stroke |
Displacement: |
200CC |
Product Description
Certificates: CE, EPA, CARB, EURO-2
Power supplier: 11HP(8.25Kw)
--Displacement: 337CC
--Engine type: G340, 4 stroke, OHV, air-forced cooling, single-cylinder, gasoline
--Fuel Capacity: 6.5 L (1.7 US gallon)
--Oil tank capacity: 1.1L
--Operational Capacity per tankful (approx. ): 3.5 hrs
--Max working load: 2200lbs. /minute. (theoretical)
Max. Throwing distance: 10-15m (theoretical)
Max. Working width: 28"(71cm)
Max. Working thickness: 22"(56cm)
Chute rotating angle: 190 Degree
Type of transmission: Friction disc
Stage gears: 4 Forward, and 2 Reverse
Type of wheels: 15X5.5-6 inch tyre/ caterpillar
Starting method: Recoil & Electrical starter
N. W/G. W: 108/120 kg
Packing Dimension: 115 x 76 x 78(cm)
Conveyance: 30PCS/20'GP; 90PCS/40'GP.
