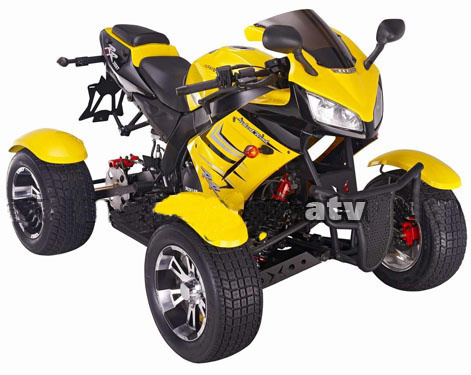

New 350CC EEC ATV Quad Bike (XY350ST)

Specifications

Prod Model:	XY350ST

Product Description

Engine


Engine Type: 183FMP, /single cyliner / Four-stroke /air-cooled
Displacement (ml): 348
Bore * Stroke (mm): 83*64.5
Compression Ratio: 9.0: 1
Max. Power (kw/r/min): 17.4/7500
Max. Torque (N. M/r/min): 23.5/6000
Max. Speed (Km/h): 88
Lubrication: Pressed/splash
Clutch Type: Wet multiplate manual clutch
Ignition: P. E. I
Starting System: Electric
Transmission System: Chain drive
CHASSIS
Front Suspension: Independent double wish-bone with dual surge tank
Rear Suspension: Swing arm with single surge tank
Front Brake: Disck brake (four-wheels linkage brake)/hand
Rear Brake: Disck brake (four-wheels linkage brake)
Stationary Brake: Mechanical lock
Front Tire: AT 20*8-12
Rear Tire: AT 20*10-12
Battery: 12V 14Ah
DIMENSIONS
L * W *H (mm): 1920*1290*1125
Seat Height (mm): 850
Wheelbase (mm): 1280
Turning Radius (mm): 1600
Min. Ground Clearance (mm): 240
Max. Permissible Weight (kg): 150
Rider Capacity: 2
Dry. Weight (kg): 252
Engine Oil (L): 2.5
Fuel Tank Capacity (L): 16L
Others
Packing Weight (kg): 305Kg
Container Loading:
12units/20', 28units/40', 39units/40'HQ

Colors Available: Red, Yellow, Green.
