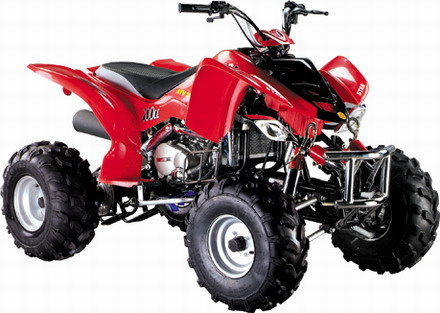

200CC EPA ATV / Quad (200cc-9)

Specifications

Prod Model:	ATV-200CC-9

Product Description

200CC EPA ATV, Quad Bike

Specification:
Engine: 200CC, Single cylinder, water-cooling, 4 stroke
L*W*H(mm): 1760x1065x1190
Wheel base: 1180mm
Seat height(mm): 840mm
Ground clearance(mm): 160mm
Brake: Drum(F) disc(R)
Transmission system: Chain
Tire: 21x7-10(F) 20x10-10(R)
Load(kg): 150kg
Fuel tank capacity(gallon)(L): 4L
Climbing capacity: ≥20
Maximum speed(km/h): 75km/h
Starter syster: Electric starter
Maximum power(Kw/rpm): 10.3kw/7500rpm
Maximum torque(Nm/rpm): 15nm/6000rpm
N. W. /G. W.: 155kg/185kg
Carton size: 1460x850x870mm
Container: 20PCS/20Qty 44PCS/40Qty 66PCS/40HQ
