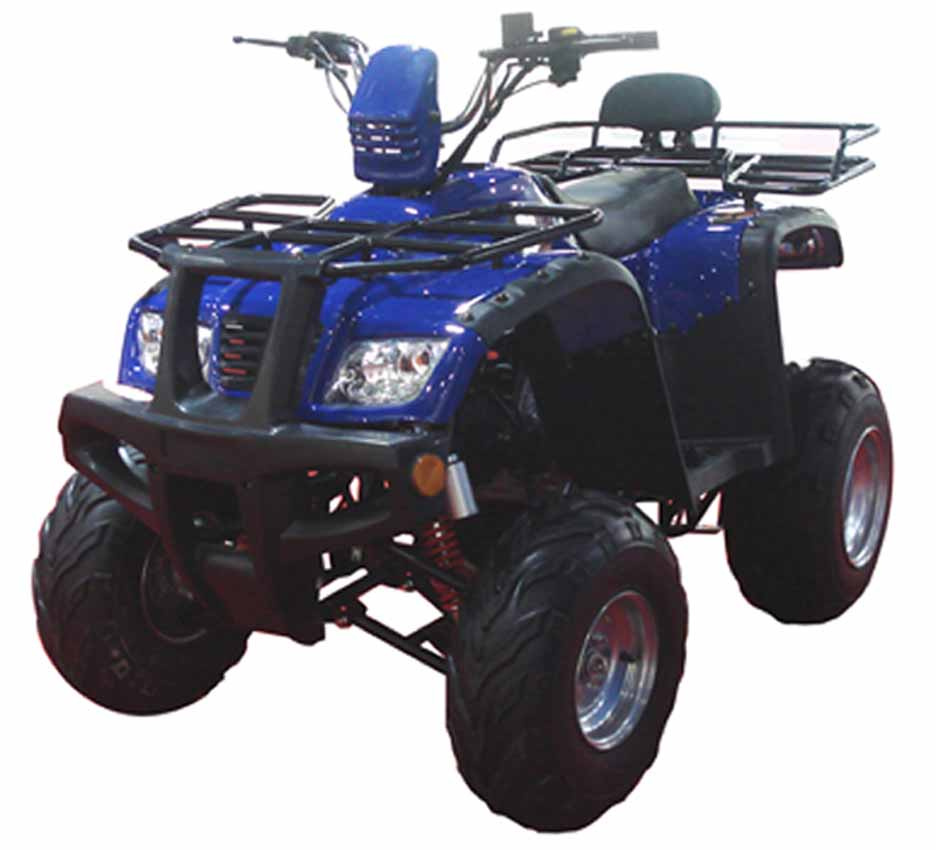

NEW 150cc/200cc Available ATV (FA150D-4,FA200D-4)

Specifications

Prod Model:	FA150D-4,FA200D-4

Product Description

FA150D-4
Engine:150cc,4-stroke, GY6, air cool
L x W x H(mm):1730 x 1000 x 1150
Seat height(mm):860mm
Ground clearance(mm):160mm
Max.speed(mile/hour):80km/h
Max.power(Kw/rpm):8.0kw/7500rpm
Max.torque(Nm/rpm):10.7kw/6500rpm
Fuel tank capacity(gallon):5L
Starter system:Electric start
Transmission system:Chain
Climbing capacity::20
Ignition:CDI
Tire:19 x 7-8(F) 18 x 9.5-8(R)
N.W./ G.W.:155/187kg
Carton size(mm):1510 x 820 x 860mm
Container:20pcs/20'GP;42pcs/40'GP;63pcs/40'HQ

FD200D-4
Engine: 200cc 4 stoke
L x W x H(mm):1770 x 1100 x1360
Max. Speed: 80km/h
Load: 200kgs
Fuel tank volume: 5L
Starting system: Electric starter
Transmission mode: chain
Ground clearance: 160mm
Seat Height: 800mm
Climb capability: 20
Tire: 19 x 7-8 (F) 20 x 10-10(R)
Wheel base: 1075mm
N.W./G.W.: 173kg/205kg
Carton size: 1700x x 1000 x 880mm
Container: 12pcs/20'GP; 26pcs/40'GP ;39pcs/40'HQ
