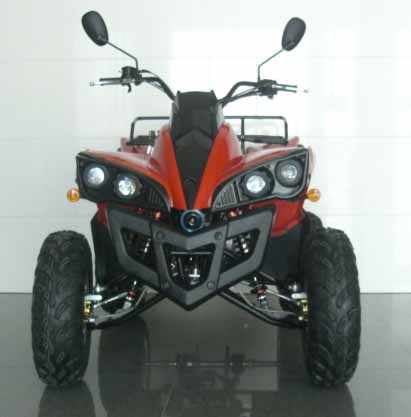

300cc EEC ATV (FA300S-8)

Specifications

Prod Model:	FA300S-8

Product Description

Engine type: Single-cylinder, air-cooled and four-stroke
Power: 12.5kW/7, 000rpm
Maximum torque: 20.2N. M/6, 000rpm
Fuel tank capacity: 10.8L
Transmission mode: Chain
Start mode: Electric
Maximum speed: 90kph
Break type (F/R): Disc/disc
Power source: 12V, 20Ah
Climbing degree: 20
Front hanging: Double arm-swing
Cylinder size: 75 x 62mm
Displacement: 274mL
Transmission: Four forward gears with one reverse gear, manual clutch
Minimum turning radius: 1, 750mm
Parking trig: Mechanical lock
Ignition mode: CDI
Engine oil: 2L
Maximum number of riders: 1
Lubrication: Press splash
Compression proportion: 8.67: 1
