Neighborhood Electric Vehicles

Specifications

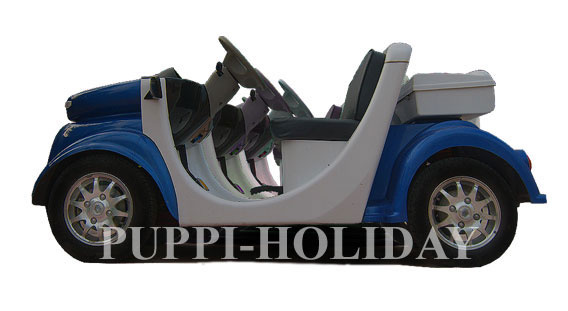

Prod Model:	PUPPI-HOLIDAY-N

Product Description

Standard Passanger model
Passanger: 2
Motor: 2.2KW rating DC motor
Drive system: Single speed (front wheel drive)
Gear ratio: 13.: 1
Tyre size:

Top speed Forward: 32KPH
Reverse: 20KPH
Speed adjustment: Stepless Speed Control

Wheel base:
Wheel track: Front Rear
Ground clearance: 200MM
Max climbing capacity: 20%
Braking Distance: 4M
Curb Weight: 520kg
Overall Dimensions: 2475x1220x1120MM
Max. Range per charge80KM

Voltage: 36V
Battery quantity: 6pcs
Voltage of each battery: 6V
Battery capacity: 180Ah, 210Ah, 250Ah
Onboard Charger Input 220vac output: 36v 25amp

Packing: 1pcs/cartonwithironracksupport
Packing dimensions: 2, 300 x 1, 350 x 1, 120MM
Conveyance:
Qty/20' FCL: 8pcs
Qty/40' HQ: 16pcs
