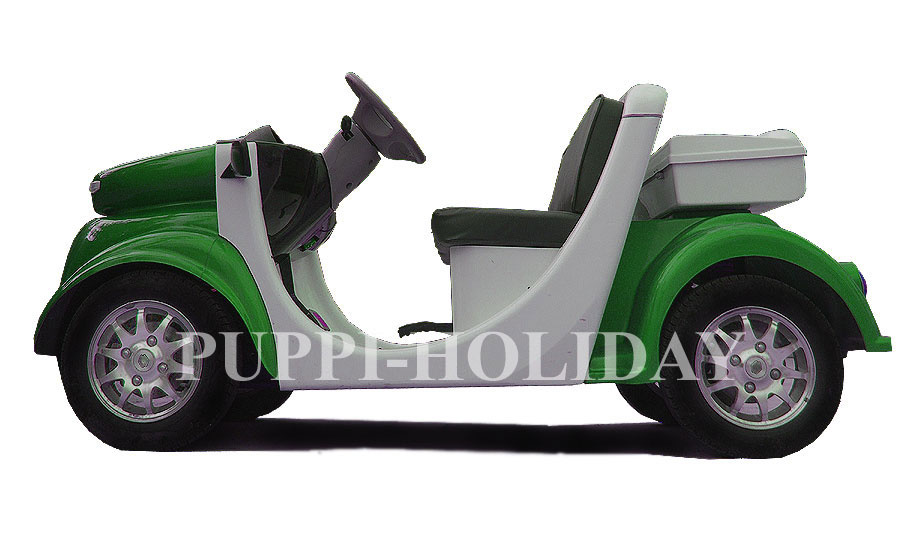

Electric Utility Vehicle

Specifications

Prod Model:	PUPPI-HOLIDAY-U

Product Description

Utility model
Passanger: 2
Motor: 3KW rating DC electric motor
Drive system: Single speed (front wheel drive)
Gear ratio: 10.: 1
Tyre size:

Top speed Forward: 40KPH
Reverse: 24KPH
Speed adjustment: Stepless Speed Control

Wheel base:
Wheel track: Front Rear
Ground clearance: 200MM
Max climbing capacity: 28%
Braking Distance: 4M
Curb Weight: 520kg
Overall Dimensions: 2475x1220x1120MM
Max. Range per charge: 80KM

Voltage: 48V
Battery quantity: 6pcs
Voltage of each battery: 8V
Battery capacity: 140Ah, 160Ah
Onboard Charger: Input 230vac output: 48v 25amp

Packing: 1pcs/cartonwithironracksupport
Packing dimensions: 2, 300 x 1, 350 x 1, 120MM
Conveyance:
Qty/20' FCL: 8pcs
Qty/40' HQ: 16pcs
