Specifications
| Prod Model: | BZ157QMJ |
|---|
Product Description

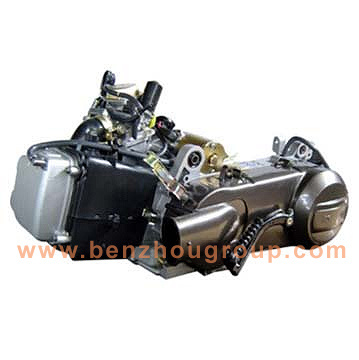

Product Name:Motorcycle EngineModel Number:BZ157QMJ
Place of Origin:China
Payment Terms:T/T or L/C
Specifications:
1) Engine type:Single cylinder, 4-stroke, air-cooled, 4-valve
2) Max.Power:8.0kW/8000rpm
3) Standard power:7.6kW/7500rpm
4) Max.Torque & rotational speed:11.5N.M/6000rpm
5) Min.Fuel consumption:367kg/kW.H
6) Min.Unloaded rotational speed:1500 ± 100rpm
7) Cylinder diameter:57.4mm
8) Piston distance:57.8mm
9) Displacement:149.5ml
10) Compression rate:10.5:1
11) Spark plug angle:13~31o
12) Rotating direction:Left
13) Ignition:CDI
14) Lubrication:Pressed-splash
15) Start mode:Electric
16) Transmission:
A) Clutch mode:Dry auto-centrifugal force
B) Gear shift:Automatic transmission
C) Transmission mode:Belt
17) Parts specifications:
A) Carburetor:PD24J
B) Magneto:CFW125-8
C) Spark plug:ATRTC
D) Air cleaner type:Paper core
E) Muffler type:Paper core
F) Exhaust muffler cleaner type:BZ4070A
G) Oil pump mode:Rotor type
H) Cooling pump:Centrifugal
I) Starting motor mode:MQD150
18) Gasoline:RQ90
19) Lubricant:SAE 15W/40
20) Lubricating oil capacity:900ml
21) Coolant:Soft water + ML type anti-freeze
22) Coolant capacity:900ml
23) Dimensions (L x W x H):675 x 400 x 380mm
24) N.W.:27kg
