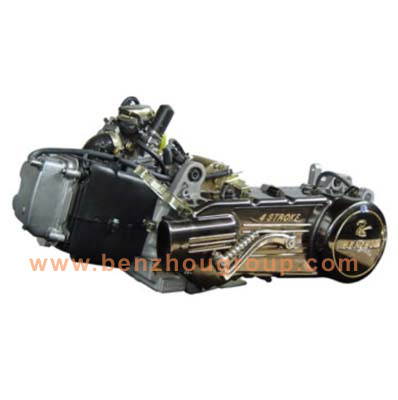

Home Benzhou Vehicle Industry Group Co., Ltd. Motorcycle Engine (BZ150QMI)
Specifications
| Prod Model: | BZ150QMI |
|---|
Product Description
Product Name:Scooter and Motorcycle EngineModel Number:BZ150QMI
Place of Origin:China
Payment Terms:T/T or L/C
Specifications:
1) Engine type:Single cylinder, 4-stroke, air-cooled
2) Max.Power:4.5kW/7500rpm
3) Standard power:4.2kW/7000rpm
4) Max.Torque & rotational speed:5.6N.M/6000rpm
5) Min.Fuel consumption:400kg/kW.H
6) Min.Unloaded rotational speed:1700rpm
7) Cylinder diameter:50mm
8) Piston distance:49.5mm
9) Cylinder capacity:97.2ml
10) Compression rate:7.8:1
11) Spark plug angle:13~28o
12) Rotating direction:Left
13) Ignition:CDI
14) Lubrication:Pressed-splash
15) Start mode:Electric/kick-start
16) Transmission:
A) Clutch mode:Dry auto-centrifugal force
B) Gear shift:Automatic transmission
C) Transmission mode:Belt
17) Parts specifications:
A) Carburetor:PD24J, vacuum film
B) Magneto:CFW100
C) Spark plug:A7RTC
D) Air cleaner type:Polyurethane foam core
E) Muffler type:Resistant or double type
F) Exhaust muffler cleaner type:BZ4070A
G) Oil pump mode:Rotor type
H) Starting motor mode:MQD100/HW
18) Gasoline:#90
19) Lubricant:SAE 15W/40
20) Lubricating oil capacity:900ml
21) Dimensions (L x W x H):650 x 400 x 335mm
22) N.W.:25kg
