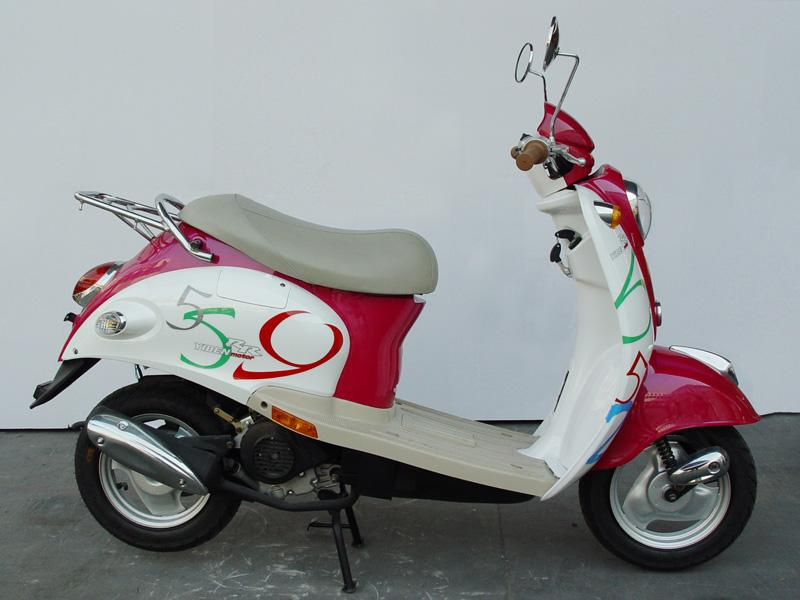

Motor Scooter (50QT-2)

Motor Scooter (50QT-2)
Price: Negotiable
Min Order: 1

Specifications

Prod Model: Gas Scooter (50QT-2)
Fuel Tank Capacity: 5-8L
Maximum Loading Capacity: 75-120kg
Max Speed: 21-50km/h

Product Description

MODEL: 50QT-2
1. Dimensions: 1, 660 x 650 x 1, 040(L x W x H mm)
2. Wheelbase: 1, 190 (mm)
3. Groog Weight: 105 (kg)
4. Dry Weight: 84(kg)
5. Max Load: 80 (kg)
6. Max. Speed: 50(km/h)
7. Oil tank capacity: 5(L)
8. Oil type: #90 Benzine
9. Tyre and rim: F.: 3.00-10/ R.: 3.00-10
10. Brake style: F. Drum/ R. Drum
11. Absorber style: Independent hanging
12. Battery: 12V7AH

Parameter of Engine
1. Engine type: YB139QMB
2. Displacement: 49.5 (ml)
3. Eengine type: Single Cylinder, Air-cooled, 4-stroke
4. Broe*stroke: 39*41.5 (mm)
5. Ignition: C. D. I
6. Spark plug: A7RTC
7. Max power: 2.2(Kw/7500min-1)
8. Max torque: 3.0(N. M/6500min-1)
9. Max. Noise: 70.5(dB)
10. Impression Ratio: 10.5: 1
11. Transmission type: Strap
12. Lubrication: Pressure Splash
13. Starting tyre: Eletrick/kick start
14. Oil consumption: =2.1L/100km
15. Clutch: Wet type, automatism centrifugal
Packing: Outer carton inner hob
16. Container capacity:
40'HQ: 105 Units
40'FT: 56 Units
20'FT: 26 Units
