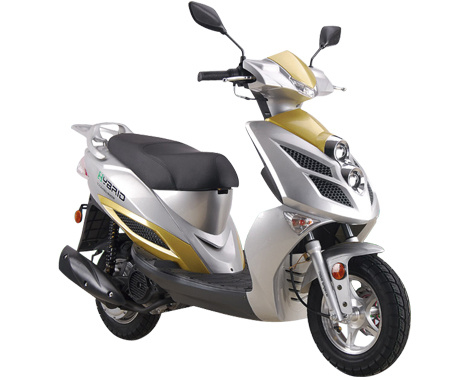

Electric and Gasoline Hybrid Scooter (HEV06)

Electric and Gasoline Hybrid Scooter (HEV06)
Price: Negotiable
Min Order: 1

Specifications

Prod Model: HEV06

Product Description

Model No.: HEV06(50CC/125CC Gasoline Engine &800CC Brussless Motor))
Size(mm): 1885x630x1170
Axle Distance(mm): 1360
Min. Ground Clearance: 140mm
Weight(kg): 110kg
Load Capacity: 150kg
Tire size: 3.50-10 220kpa for front wheel 3.50-10 220kpa for rear wheel
Under Engine Condition
Brake Distance: 7m(30km/h)
Starting: 15s

Noisance: 82dB
Headlight: 4000CD
Max. Speed: 45km/h
Best Slope Capacity: 20?
Petrol Consumption: 2.2L/100km
Engine Type: Single cylinder, foced-air cooling, 4 stroke
Engine size: 600x370x300mm
Displacement: 49.5CC
Max. Power(kw. /r. Min): 2.3/8000? 200
Rated Power(kw/r. Min): 2.1/7500? 200
Max. Torque N. M(r/min): 2.8/6000? 250
Oil No.: 90#

Fuel No. SAE-15W/40
Fuel Capacity: 5L
Starting Mode Electrical starting, Kick starting
Ignition: CDI
Spark Size: A7RTC
Under Battery Condition
Motor Type: 800W brushless
Rated Voltage: 36V
Battery Type: 36V15Ah LITHIUM battery
Engine battery 12V5AH
Horn Type: 12V
Headlight Type: 12V18W
Turninglight Type: 12V5W
Taillight type: 12V5W
