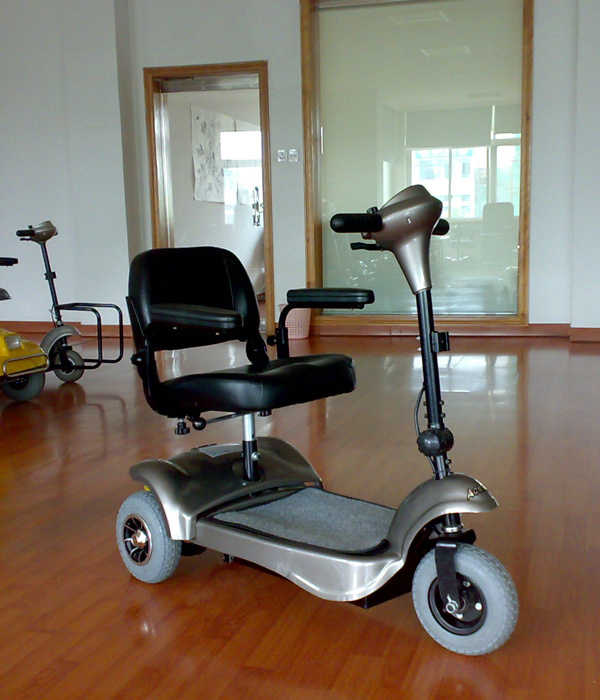

Home Zhejiang Longshine Industry & Trade Co., Ltd. Mobility Scooter
Specifications
| Prod Model: | J39TL |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: | Electric Tool |
| Speed: | Constant Speed |
| Starting Mode: | Capacitor-start-and-run Single Phase Asynchronous Motor |
| Power Source: | AC Motor |
| Structure: | Synchronous Motor |
| Function: | Driving |
Product Description
Overall Dimentions (LXWXH): 1067X483X940 mmWeight without battery: 30 kgs
Max Speed: 7.8 km/h
Braking Distance 1.1 m (Dry Surface, adjustable)
Max Climbing slope : 12 degree
Ground Clearance 50 mm
Weight Capacity 120 kgs
Motor Rated Power 24V 250 W
Controller 24V 45A
Battery Charger: 220V AC 24V/1.8A/2A DC
Batteries : 2 PCS of 17AH ( AGM or GEL battery)
Battery Weight: 11.4 kgs
Braking System: Electric Regenerative Braking
Front Tire: 9"X3" Pneumatic
Rear Tire : 9"X3" Pneumatic
Seat Type : Small
Seat color available: Black
Seat Size (LXWXH ): 380X420X36(42) mm
Seat Weight: 7kgs
Container packing: 87 PCS / 20 GP`
181 PCS / 40 GP`
203 PCS / 40 HQ`
Range per Change: 21 km
