Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Usage: | Electric Tool |
| Speed: | Constant Speed |
| Starting Mode: | Capacitor-start-and-run Single Phase Asynchronous Motor |
| Power Source: | AC Motor |
| Structure: | Synchronous Motor |
| Function: | Driving |

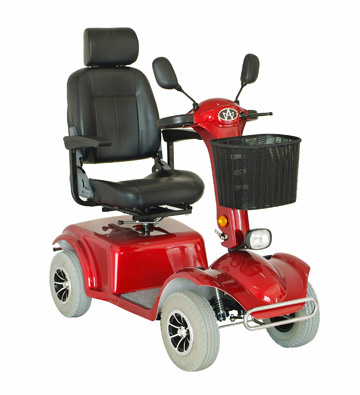

Product Description
Overall Dimentions (LXWXH): 1482X690X1280 mmWeight without battery: 79 kgs
Max Speed: 12 km/h
Braking: 2.0 m (Dry Surface)
Max Climbing slope: 15 degree
Ground Clearance: 82 mm
Weight Capacity: 205 kgs
Motor Rated Power: 24V, 800W
Controller: 24V 120A
Battery Charger: 5A
Batteries: 2 PCS of 55AH
Battery Weight: 34.3 kgs
Braking System: Electric Regenerative
Braking and Hand Brake
Front Tire: 12"X4.1" Pneumatic
Rear Tire: 12"X4.1" Pneumatic
Seat Type Capital
Seat color available: Grey, black, camel
Seat Size (LXWXH ): 480X490X710 (780)mm
Seat Weight: 20.2kgs
Container packing: 33 PCS / 20 GP`
69 PCS / 40 GP`
82 PCS / 40 HQ`
Range per Change: 48-55 km
