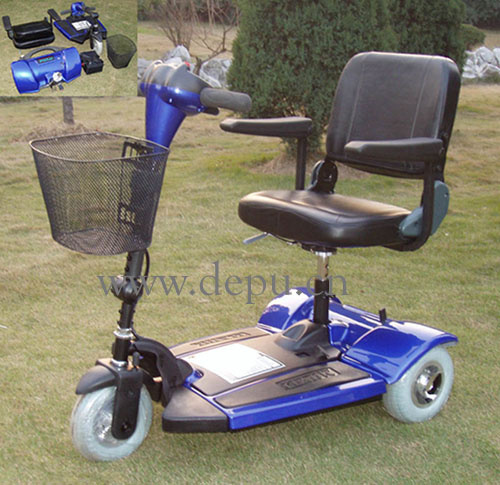

Mobility Scooter Portable with 4 Parts (DP-E008)

Specifications

Prod Model:	DP-E008

Product Description

Features:
This model could be portable with 4 parts easily without any tools in few seconds, also the tiller could be adjustable according to the driver for comfort and ease for use. The tire is solid without air. It could judge the defect from the sound when you turn on the key.
Controller: CURTIS Controller, which is one of the best in the world
Motor: Rear Axle Motor
Battery: Sealed lead-acid maintenance-free battery

Dimension: 1050*550*930mm
Max forward speed: 6-12km/h (optional)
Max backward speed: 2. 4-4. 8km/h (optional)
Max range: 20km
Max Load: 140kg
Ground Clearance: 40mm
Turning Radius: 120cm
Motor: 24V 300W or 24V 200W(You could choose)
Battery: 12V 12AH (two)
Charger: 110-250VAC/24VDC-4. 0A
Tyre: Solid, front: 2*8. Inches, rear: 3*9inches
Total weight without batteries: 44kg
Heaviest piece when disassembled: 19. 8kg
Container: 66pcs/20ft, 132pcs/40ft
Carton size: 1380*620*470mm
