Specifications
Product Description

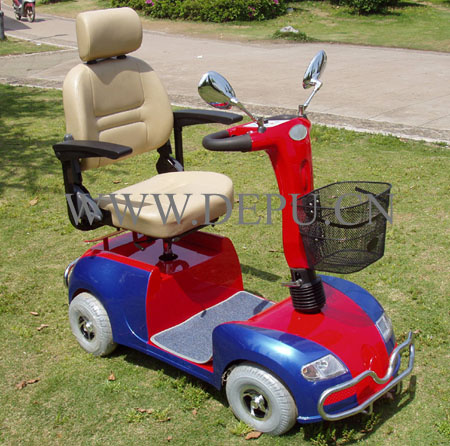

DP-E002
Features:
1) It could judge the defect from the sound when you turn on the key.
2)With sway accelerator lever , operated easily.
3)With battery energy indicator, oval waterproof touched control panel which highlight easy operation.
Motor: Rear Axle Motor (450W/600w)
Battery: Sealed lead-acid maintenance-free battery
Battery: 12V 38AH (two)
Motor: 450w/600w
Charger: 110-230VAC(optional) 24VDC-4A
Charge time: 6-8h
Running distance per charge: 50km
Max forward speed: 8. 5km/h
Max backward speed: 2. 4-4. 8km/h(optional)
Max Load: 140kg
Ground Clearance: 155mm
The actul max gradient: 12degree
Turning Radius: 150cm
Tyre: 10" (pneumatic tyre or unpenumatic tyre)
N. G: 140kg(contain 2 battery: 28kg)
Dimensions(mm): 1420mm *650mm *1200mm
Overall carton size: 1450mm * 660mm * 600mm
Carfon size for seat: 490mm *440mm * 270mm
Qty/Container: 36pcs/20ft, 72pcs/40ft
