| Prod Model: | MA300E-L |
|---|
Product Description

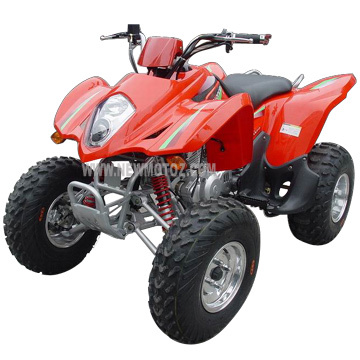

Model: MA300E-LColors: Black, Blue, Green, Red, Yellow
KEY FEATURES:
300cc engine, 4 stroke, chain drive, 5 forward gear, rear disc brake, alloy rim, with EEC homologation.
Specifications
Engine Type 300cc, air-cooled, 5 forward gear
Final Drive chain drive
Bore x Stroke(mm) 78x61.2mm
Piston Displacement(cc) 292.5cc(GN300)
Compression Ratio 8.9: 1
Max Power(kw/r/min) 12
Starter Sytem electric
Lubricaiton wet sump
Trasmission 5 forward gear with reverse
Final Ratio 2.667(40: 15)
Overall LxWxH(mm) 1735x1037x1050
Packing LxWxH(mm) 1920x1140x1200
Wheel Base(mm) 1117
Seat Height(mm) 122
Ground Clearance(mm) 762
Load capacity(kg) 165
Brake(Front/Rear) disk/disc
Tire, Front AT21x7-10
Tire, Rear AT21x10-8
Ignition Type CDI
Fuel Tank Capacity(L) 7.5
Front Suspension double wishbone/7.1"
Rear Suspension Swing Arm/7.1"
Max Speed(km/h) 75
NW(kg) 220
GW(kg) 250
Quantity of Loading 12PCS /20'ft; 24PCS /40'ft, 36PCS/40'Hq
Please contact us if you are interested in 300cc EEC ATVs.
Different Colors of 300cc EEC ATV are available.
We can supply all kinds of 300cc EEC ATVs.
We can also supply EEC ATVs accessories as your demands. Besides EEC ATV, we can offer you other ATVs. Our company produce not only ATVs, but also Buggy, Dirt bike, Scooter and pocket bike,Mini Quad Bike, Mini Dirt Bike, Mini Quad Bikes, Mini Dirt Bikes, mini quadbikes, Mini dirtbike, Mini Quads, Pocket Bikes and so on.
Our factory covers area of 2, 000 square meters with 3 workshops. Now we have more 300 workers and 30 engineers. Our sales valume is 500 million US dollars per year. Our main market is France, Germany, Spain, UK, Holland, Sweden, Finland, Poland, Norway, Australia, South Africa and USA.
We value the customer satisfaction and quality are the first priority for us, also we supply reliable warranty and good after-sales service, which makes us a leading manufacturer in this line.
We value the customer satisfaction and quality are the first priority for us, also we supply reliable warranty and good after-sales service, which makes us a leading manufacturer in this line.
