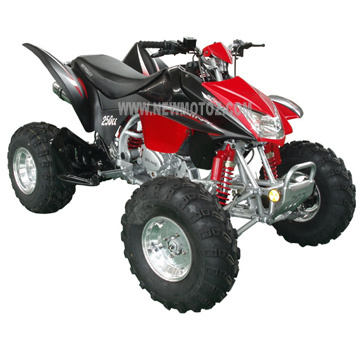

Mini Quad Bike (MA250R-B)

Specifications

Prod Model:	MA250R-B

Product Description

Model: MA250R-B
Colors: Black, Blue, Green, Red, Yellow

KEY FEATURES:
250cc engine, air cooled, 4 stroke, chain drive, four speed with reverse, front/rear disc brake, double A swing arm and gas-charge shock absorber at front.

Specifications
Length x Width x Height(mm): 1870x1150x1160
Wheel Base (mm): 1260
Engine Type: Single cylinder, air-cooled, 4-stroke
Start Mode: Electric
Power(kw/r/min): 11.5kw/6500rpm
Max Torque(N. M/r/min): 17.5N. M/5500rpm
Max Speed(km/h): ≥75
Dry Weight(kg): 190
Transmission Mode: Chain
Braking Mode(front/rear): Disc/disc
Specification: 12V 14AH
Tank Capacity(L): 9.8L
Front Hanging: Integral ballonet absorber
Rear Hanging: Integral ballonet absorber
Specification of tyre: Front wheels: 23x 7-10
Rear wheels: 22x10-10
Cylinder Diameter*Journey(mm): 67x65mm
Displacement(ml): 230
Shift Gear: 4 gears with reverse gear, manual clutch
Mini Turning radium(mm): 2750
Parking Trig: Hydraulic pressure lock
Ignition Mode: CDI
Loading Capacity(kg): 150
Person: 1
Compressoin Proportion: 9.2: 1
Conveyance: Qty/20'GP: 12units Qty/26'GP: 28unit
Qty/40HQ: 42unit

Please contact us if you are interested in 50cc OFF-ROAD ATVs.
Different Colors of 50cc OFF-ROAD ATVs are available.
We can supply all kinds of 50cc OFF-ROAD ATV.
We can also supply 50cc OFF-ROAD ATV accessories as your demands. Besides 50cc OFF-ROAD ATV, we can offer you other ATVs. Our company produce not only ATVs, but also Buggy, Dirt bike, Scooter and pocket bike, and so on...
