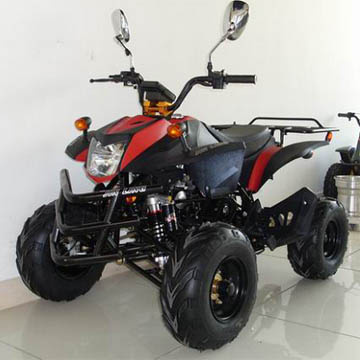

Home Ningbo Newmotoz Industry Co., Limited Mini Quad Bikes (MA250E-N)
| Prod Model: | MA250E-N |
|---|
Product Description
Model: MA250E-NColors: Black, Blue, Green, Red, Yellow
KEY FEATURES:
250cc engine, 4 stroke, water cooled, chain drive, four speed with reverse, rear disc brake, double A swing arm and gas-charged shock absorber at front, EEC homologated.
Specifications:
Engine: 250cc water cooled, single cylinder, 4 stroke
Max power out: 9.45/7000 KW/R/MIN
Max speed: 77 km/h
Suspension/front: Aluminium air-cell adjustable 70 mm travel
Suspension/rear: Aluminium air-cell adjustable 65 mm travel
Brakes/front: Hydraulic disc
Brakes/rear: Hydraulic single disc with twin-piston calliper
Tires/Front: 21x7-10
Tires/Rear: 20 x 10-10
L x W x H: 1685 x 1020 x 1080 mm
Seat height: 850 mm
Front tire wheelbase: 850 mm
Front tire wheelbase: 840 mm
Reat tire wheelbase: 850 mm
Wheelbase: 1500 mm
Fuel capacity: 4.8 L
Dry weight: 150 kgs
Max load: 100 kgs
Carton size: 1440 x 880 x 890 mm
Loading: 20PCS for 20ft, 65PCS for 40HQ
Please contact us if you are interested in 250cc EEC ATVs.
Different Colors of 250cc EEC ATV are available.
We can supply all kinds of 250cc EEC ATVs.
We can also supply EEC ATVs accessories as your demands. Besides EEC ATV, we can offer you other ATVs. Our company produce not only ATVs, but also Buggy, Dirt bike, Scooter and pocket bike, and so on.
Model: MA50E-J
Colors: RED/YELLOW/BLUE/GREEN/CAMOUFLAGE
KEY FEATURES:
50cc, 4 stroke, air cooled, chain drive with reverse, front/rear disc brake, front tire 17 x 7 C 8, rear tire 16 x 8 C 7, EEC homologated
Specifications:
Engine: 48 cc
Max torque: 4.2Nm/5000rpm
Max power: 3.0kw/8500rpm
Ignition type: CDI
Transmission: Automatic, China, reverse gear
Brake: Disc/disc
Starting system: Electric start
Battery spec: 12V4AH
Front suspension: Double A swing arm, air chamber shock absorber
Rera suspension: Mono shock swing arm, air charmber shock absorber
Front tire: 17 x 7 - 8
Rear tire: 16 x 8 - 7
Vehicle Dimension: 146 x 94 x 90 cm
Wheel base: 880 mm
Seat height from ground: 60 cm
Ground clearance: 100 mm
Load capacity: 75 kg
Fuel tank capacity: 3.2 L
Gross weight: 95 kgs
Packing size: 129 x 83 x 65 cm
Loading: 34PCS/20 ft, 92PCS/40 HQ
Please contact us if you are interested in 50cc EEC ATVs.
Different Colors of 50cc EEC ATV are available.
We can supply all kinds of 50cc EEC ATVs.
We can also supply EEC ATVs accessories as your demands. Besides EEC ATV, we can offer you other ATVs. Our company produce not only ATVs, but also Buggy, Dirt bike, Scooter and pocket bike, Mini Quad Bike, Mini Dirt Bike, Mini Quad Bikes, Mini Dirt Bikes, mini quadbikes, Mini dirtbike, Mini Quads, Pocket Bikes and so on.
Our factory covers area of 2, 000 square meters with 3 workshops. Now we have more 300 workers and 30 engineers. Our sales valume is 500 million US dollars per year. Our main market is France, Germany, Spain, UK, Holland, Sweden, Finland, Poland, Norway, Australia, South Africa and USA.
We value the customer satisfaction and quality are the first priority for us, also we supply reliable warranty and good after-sales service, which makes us a leading manufacturer in this line.
We value the customer satisfaction and quality are the first priority for us, also we supply reliable warranty and good after-sales service, which makes us a leading manufacturer in this line.
