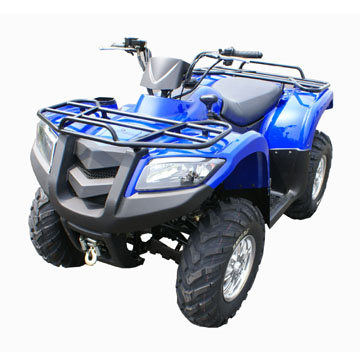

Mini Quad Bike (MA500E)

Specifications

Prod Model:	MA500E

Product Description

Model: MA500E
Colors: Black, Blue, Green, Red, Yellow

KEY FEATURES:
500cc, 4 stroke, oil cooled, shaft drive, CVT with reverse, 4x4 drive, front dual disc brake, EEC homologated.

Specifications:
Overall length 2080 mm
Overall width 1200 mm
Overall height 1274 mm
Seat height 877 mm
Wheel base 1285 mm
Minimum ground clearance 280 mm
Minimum turning radias 3000 mm
Basic weight with oil and full fuel tank 348 kgs
Engine tyre 4 stroke, liquid-cool, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displayment 493 cc
Bore x stroke 87.5 x 82 mm
Compression ratio 10.2: 1
Starting system Electric and recoil starter
Fuel consumption 7.59 L/100 km
Rated power 24 kw
Max power 24. C kw
Lubrication system Wet sump
Engine oil 2200 ml
Final gear case oil 300 ml
Differential gear case oil 330 ml
Radiator capacity(including all routes) 2000 ml
Air filter Wet tyre element
Fule type Unleaded fuel
Fuel tank capacity 18 L
Fuel reserve amount 3.5 L

Please contact us if you are interested in 500cc EEC ATVs.
Different Colors of 500cc EEC ATV are available.
We can supply all kinds of 500cc EEC ATVs.
We can also supply 500cc EEC ATVs accessories as your demands.
Besides EEC ATV, we can offer you other ATVs. Our company produce not only ATVs, but also Buggy, Dirt bike, Scooter and pocket bike, Mini Quad Bike, Mini Dirt Bike, Mini Quad Bikes, Mini Dirt Bikes, mini quadbikes, Mini dirtbike, Mini Quads, Pocket Bikes and so on...
