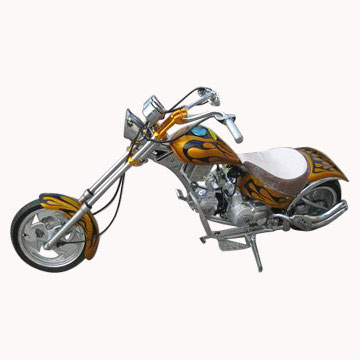

Mini Chopper (GS-878)

Specifications

Prod Model:	GS-878

Product Description

Specification:
1) Engine: Air-cooled four stroke single cylinder
2) Displacement: 49cc
3) Compression ratio: 8.4:1
4) Cylinder bore X stroke: 39mm41. 4mm
5) Max output: 2kw/7500rpm
6) Max torque: 2.6n. M/5000rpm
7) Gears: Cycling gearshift four gears
8) Ignition means: CDI
9) Oil supply: PZ19 carburetor
10) Front fork rake angle: 45
11) Axle base: 1460mm
12) Seat height: 480mm
13) Tire: 70/70-12PR(Front); 205/30-10PR(Rear)
14) Tank capacity: 4L
15) Product size: 1860mm x 610mm x 970mm

Packing:
Carton dimensions142 x 45 x 83 cm
Net W. : 80 Kg
Container loading123pcs/40HC
