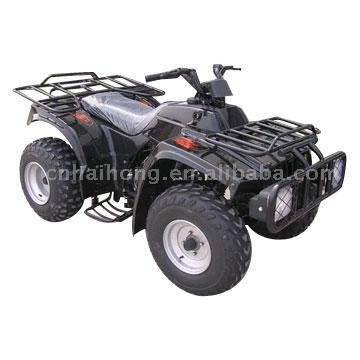

ATV (QM-250CC)

Specifications

Prod Model:	QM-250CC

Product Description

Item No.: QM-250CC chain drive
Specifications:
1) Engine type: 4-strokes, air cooled fully automatic
2) Transmission system: chain drive
3) Piston displacement (ml): 249.2ml
4) Maximum power (kw/r/min): 10kw/6500r/min
5) Maximum torque (N.m/r/min): 15N.m/5500r/min
6) Starting system: electric/recoil backup
7) Transmission: 5-speed, semi automatic
8) min turning radiums:2900mm
9) Brake (front/rear): drum/drum
10) Tire (front): AT22 x 7-10
11) Tire (rear): AT22 x 10-10
12) Ignition type: C.D.I
13) Fuel tank capability (L): 12L
14) Front suspension: independent front suspension
15) Rear suspension: swing arm
16) Parking brake: mechanical lock
17) Battery: 12V-14AH
18) Engine oil capacity (L): 1.6L
19) Gear oil capacity (L): 0.27L
20) Wheel base: 116cm
21) Lubrication: pressuring splash
22) N.W.: 210kgs
23) G.W.: 240kgs
24) Compression ratio: 8.7:1
25) Max loading capacity:165kgs
26) Rider capacity: 1 person
27) Packing:
Product size:194x 105x 116cm
Carton: 197 x 111 x 98cm
28) Container:
12units/20ft
24units/40ft
29) Color:black,C.camouflage
