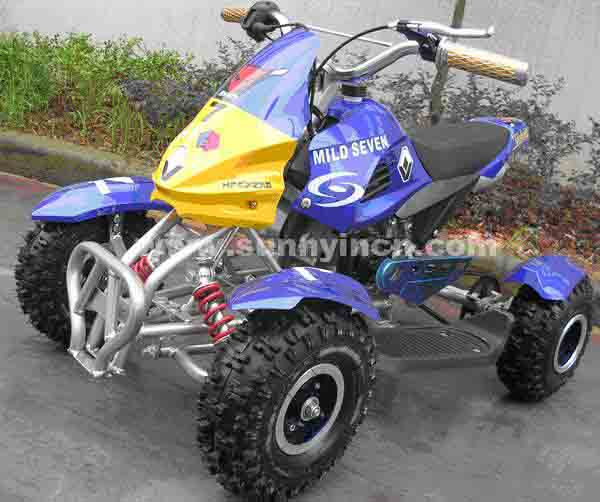

Home Sunny Industries Co., Ltd Mini ATV (CTMATV-4)
Specifications
| Prod Model: | CTMATV-4 |
|---|
Product Description
1) Max. speed: 50km/h2) Max. loading capacity: 110kg
3) Engine: 49cc, single cylinder, air-cooled, 2-stroke
4) Rated power and rotate speed: 1.8kW/7,500rpm
5) Max. torque and rotate speed: 3.5N.m/6,000rpm
6) Driving mode: chain
7) Starting system: pull start
8) Oil type: petrol, 1:25 engine oil mixing
9) Tank capacity: 1L
10) Tires (front / rear): 4.10-6/13 x 5.00-6
11) Brake system rear: disc brake (manual)
12) Dimensions (L x W x H): 1,030 x 580 x 490mm
13) Carton dimensions: 103 x 58 x 49cm
14) N.W./G.W.: 45/50kg
15) Conveyance: 88pcs /20' container 176pcs /40'HQ
