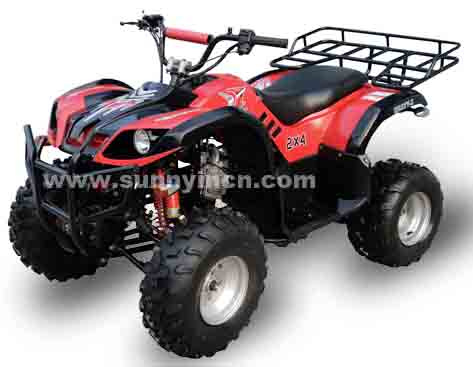

Home Sunny Industries Co., Ltd ATV (CTATV-05)
Specifications
| Prod Model: | CTATV-05 |
|---|
Product Description
1) dimensions(L*W*H): 1770*970*1050mm2) Wheel base: 1100mm
3) Min. ground clearance: 110mm
4) Dry weight: 140kgs
5) Max loading weight: 150kgs
6) Max speed: 65km/h
7) Brake: front disc & rear disc
8) Tyre size(Front/rear): 19*7-8/19*9.5-8
9) Seat height: 1060mm
10) Suspension: Front air chamber/Rear air chamber
11) Fuel capacity: 7.8L
12) Carton Size: 1520*820*780mm
13) Container loading: 20pcs/20'container 44pcs/40'container 66pcs/40'HQ
Engine specification:
1) Engine type: 110cc, single cylinder, air-cooled, 4-stroke
2) Bore*stroke: 52.4*49.5mm
3) Compressing ratio: 9.0:1
4) Max power and speed: 4.8kw/7000(-5%, +5%)
5) Max torque(N.m/rpm): 5.7N.M/6000-6500r/min(-5%, +5%)
6) Starting method: Electric
7) Lubrication way: Press and splash
8) Ignition: CDI
9) Transmission: 4-speed, manual clutch
10) Drive train: Chain
