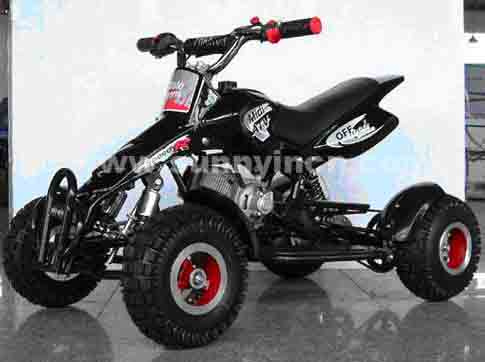

Mini ATV (CTMATV-2)

Specifications

Prod Model:	CTMATV-2

Product Description

Product size: 980 x 1,000 x 870mm
Seat height: 460mm
Engine: 49cc, 2 strokes, single cylinder, air cooling
Starting kick start
Max. Power: 1.8kW/7,500r/min
Max. Torque (N. M/r/min): 3.5N. M/6,000r/min
Compressed ratio: 8.50:1
Tank: 1.0L
Drive system: Chain
Transmission automatic clutch
Wheel size: 3.0-4
Wheel base: 690mm
Ground clearance: 50mm
Brake (front/rear): Disc brake
Max. Speed: 50km/h
Max. Load: 95kg
Range: 50km
G. W. /N. W.: 33kg/29kg
Color: Red, blue, black, yellow, orange
Carton dimensions: 1, 040 x 640 x 590mm
Conveyance: 78pcs /20' container 160pcs/40' HQ
