Specifications
Prod Model: |
QW-ATV-02C |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Semi-Automatic |
Certification: |
ISO9001 |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
110CC |
Maximum Speed: |
50-75 km/h |
Structure: |
off Road |
Brake Type: |
Front Drum Brake&Rear Hydraulic Disc Brake |
Product Description

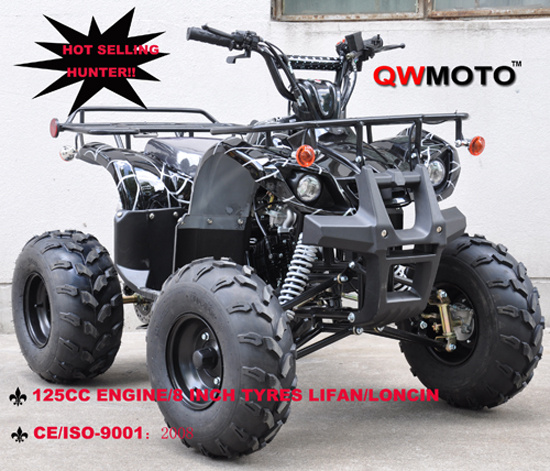

Loncin125CC ATV Quad Bike with Reverse Gear CE
Model No.: QW-ATV-02C
Specifications:
Engine: 125cc Air-cooled 4 Stroke, Single Cylinder
Starting Method: Electric
Ignition Mode: CDI
Fuel Tank Capacity 2.5L
Fuel: Straight Unleaded Petrol
Transmission: Smei-automatic 3+1gears
Drive System: Chain
Throttle Control Thumb throttle (screw restrictable to limit max throttle)
Suspension Front: Dual A arm spring shocks
Rear: Large rear shock
With turning lights Battery: 12V 6.5AH
Maximum Speed 65km/hr+
Front Brakes Drum Brakes
Rear Brakes Drilled disc hydraulics (controlled by left brake lever)
Maximum Load 100kg
Wheel Size Front + Rear: 19X7-8"/18x9.5-8"(both knobbed for all terrain use)
Rider Capacity 1 person
Dimensions (L x W x H) BOX: 1320 x 770 x 650 (mm)
BIKE: 1450 x 970 x 930 (mm)
Seat Height: 700mm
Weight Gross: 95kg Net: 88kg
Conveyance Qty:
20"GP: 36pcs, 40"HQ: 105pcs
Colors available: Red/black/green/blue/yellow etc.
