Specifications
Prod Model: |
SPACE1 KD70 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
70 |
Max. Power(Kw/Rpm): |
3.1/8000 |
Max Torque(N.M/R/Min): |
4.5/5000 |
Start: |
Electric |
Tyres: |
Front 7" Rear 7" |
Front Shock: |
255mm Non-Adjustable |
Rear Shock: |
250mm Adjustable |
Fuel Capacity: |
2.1L |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Power: |
>1000W |
Certification: |
ISO9001 |
Displacement: |
70cc |
Brand: |
Kayo |

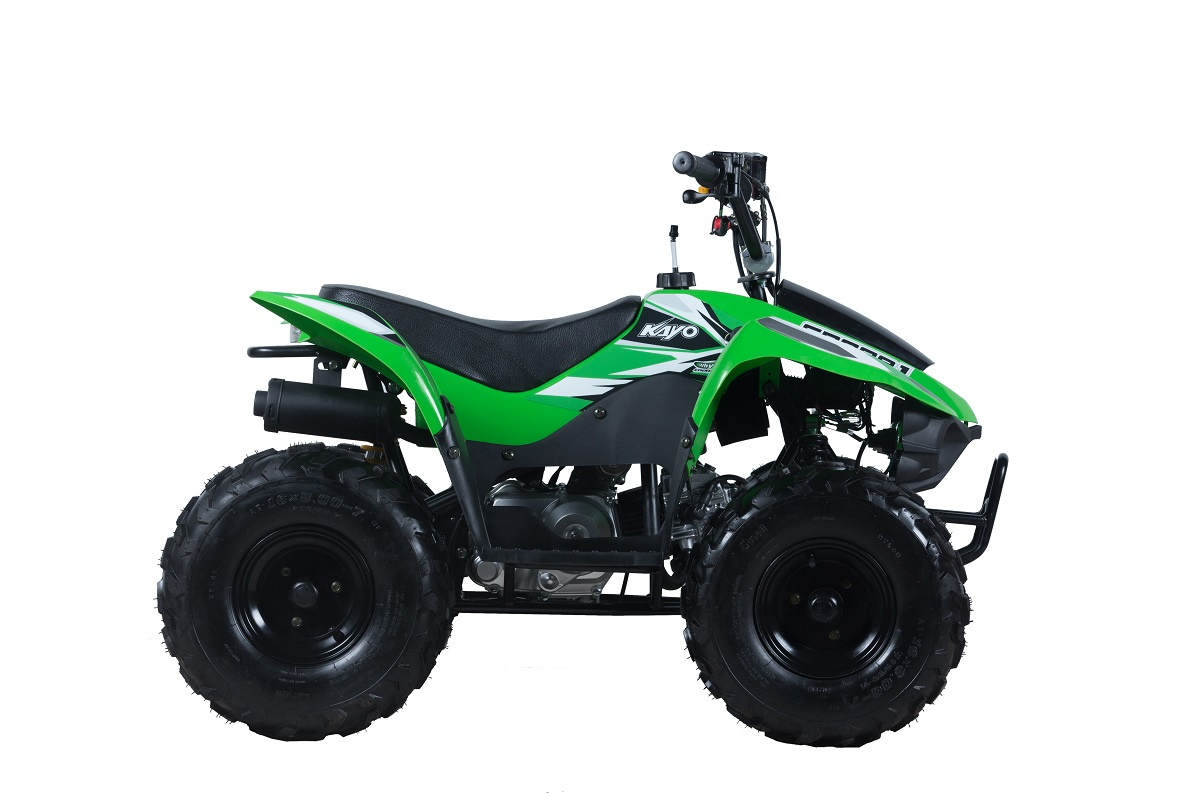

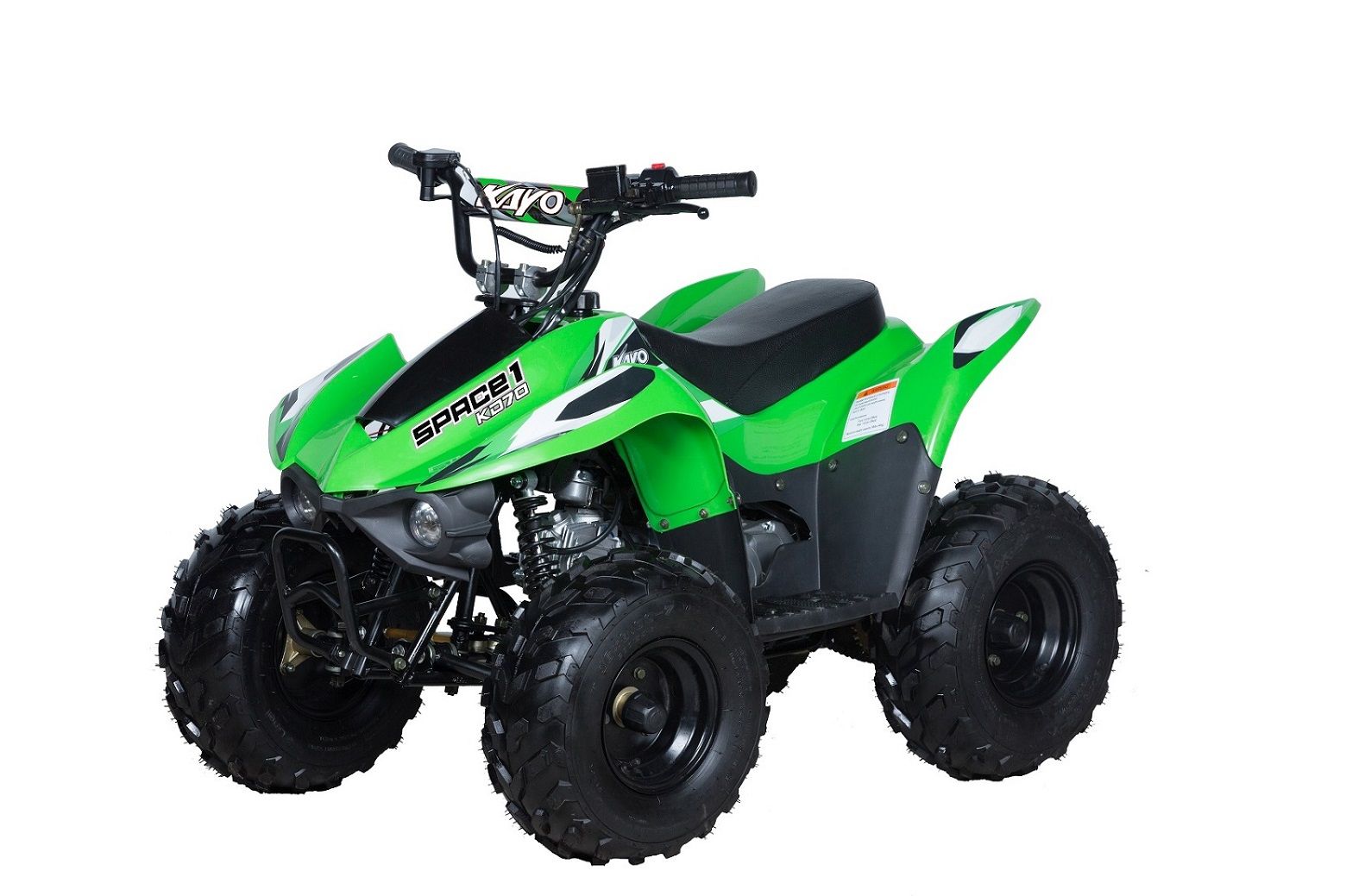

Product Description
Engine:70 | Frame:Designed and made by Kayo |
Bore*Stroke:47mm*41.4mm | Handle Bar:Steel |
Compression Ratio:8.8:1 | Gears:Full-Auto |
Max. Power(kw/rpm):3.1/8000 | Rim:Steel |
Max Torque(N.m/r/min):4.5/5000 | Tyres:Front 7" Rear 7" |
Ignition:CDI | Front Shock:255mm Non-adjustable |
Start:Electric | Rear Shock:250mm Adjustable |
Transmission:13T-37T KMC420 | Carburetor:Standard |
Seat Height:605mm | Swing Arm:Steel |
Wheel Base:770mm | Brake:Disc |
Length:1027mm | Fuel Capacity:2.1L |
Dry Weight:72.5kg | Max Speed:24KM/H |
|
Packing Dimensions:1120*650*610mm |
20'GP:54PCS |
40'HQ:144PCS |
KAYO ATV Strong Points: 1, Strong structure:The frame structure is reasonable and high strength , through a large number of 3 d simulation analysis and field test ( professional riders high strength test );And We designed and made the frame and linkage all by ourselves in own special workshop, to ensure the real high quality and best performance;
2, Riding comfort: We designed the seat by ourselves and choose the car supplier to make, we choosed the Honda shock supplier for our ATV models except Space1 KD70;
3, Steering performance: When in low speed ,it is light and flexible, easy to operate; When in high speed , the steering is very solid and steady;
4, Small shaking: By matching engine and vehicle, the vehicle vibration is better than the domestic same level models;
