Home Zhejiang Kayo Motor Co., Ltd. Kayo Sports ATV Quad Semi-Auto for Teenager

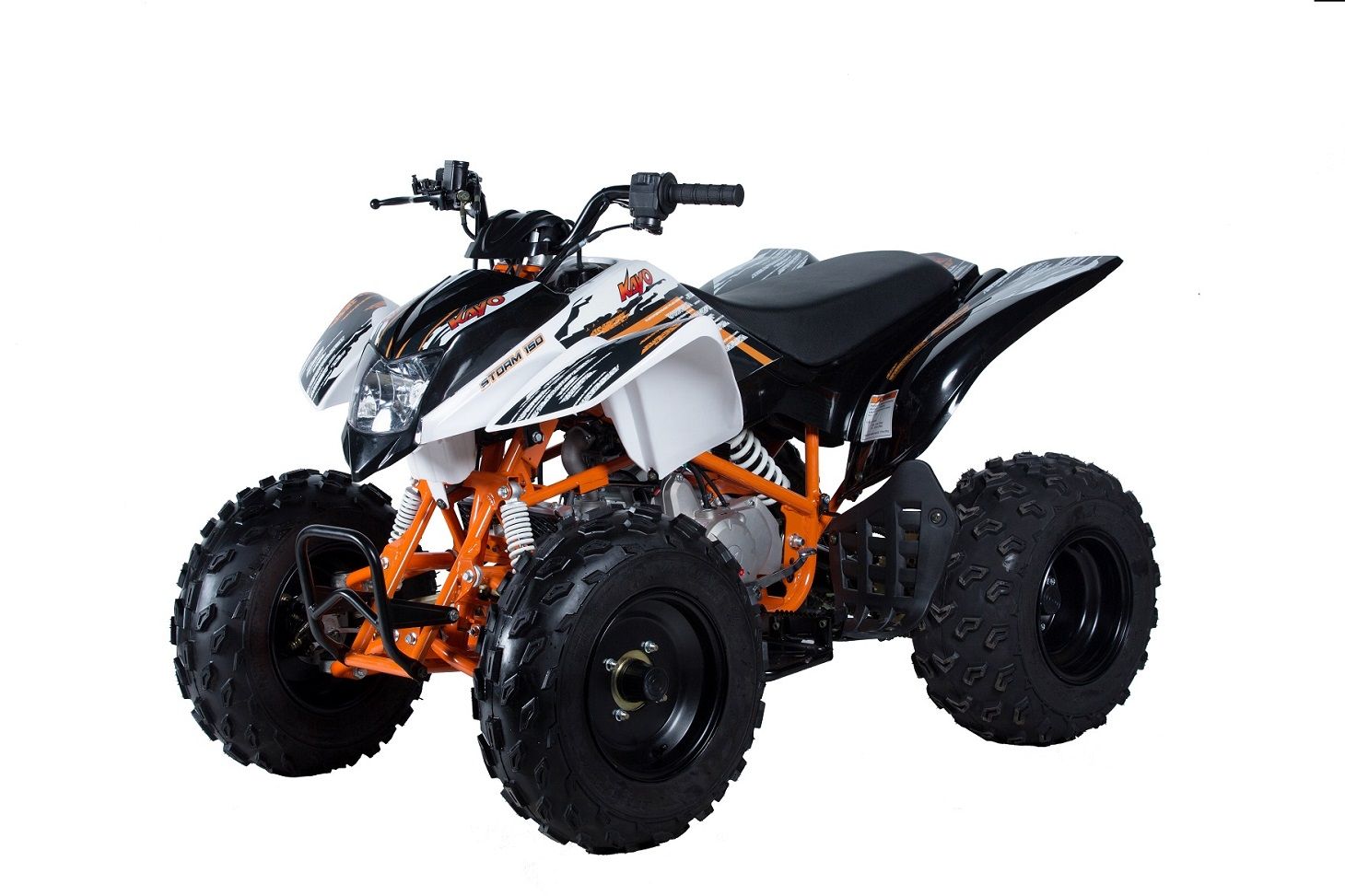

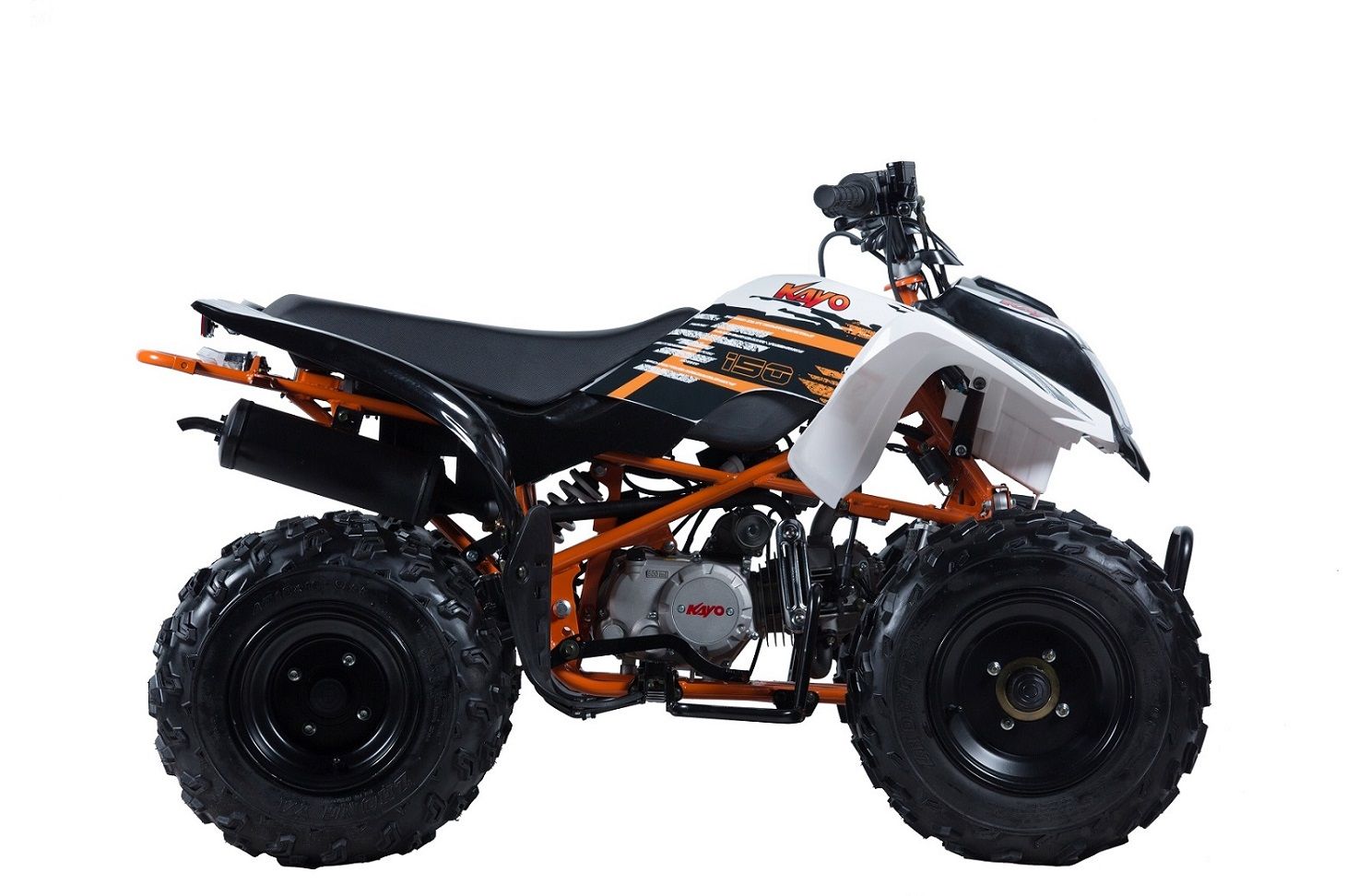

Kayo Sports ATV Quad Semi-Auto for Teenager
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | STROM 150 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | 150 |
| Max. Power(Kw/Rpm): | 7.3/8500 |
| Max Torque(N.M/R/Min): | 9.2/6500 |
| Start: | Electric |
| Tyres: | Front 10" Rear9" |
| Front Shock: | 270mm Non-Adjustable |
| Rear Shock: | 305mm Non-Adjustable |
| Fuel Capacity: | 7L |
| Transmission Type: | Semi-Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 150CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Power: | >1000W |
| Certification: | ISO9001 |
| Brand: | Kayo |
Product Description
| Engine:150 | Frame:Designed and made by Kayo |
| Bore*Stroke:56mm*57mm | Handle Bar:Steel |
| Compression Ratio:8.8:1 | Gears:Semi-Auto, 4 gears(3 front, 1 reverse) |
| Max. Power(kw/rpm):7.3/8500 | Rim:Steel |
| Max Torque(N.m/r/min):9.2/6500 | Tyres:Front 10" Rear9" |
| Ignition:CDI | Front Shock:270mm Non-adjustable |
| Start:Electric | Rear Shock:305mm Non-adjustable |
| Transmission:14T-45T KMC428 | Carburetor:Standard |
| Seat Height:745mm | Swing Arm:Steel |
| Wheel Base:1000mm | Brake:Disc |
| Length:1540mm | Fuel Capacity:7L |
| Dry Weight:121kg | Max Speed:58KM/H |
| Packing Dimensions:1460*860*720mm | |
| 20'GP:30PCS | |
| 40'HQ:63PCS | |
KAYO ATV Strong Points:
1, Strong structure: We designed and made the frame and linkage all by ourselves in own special workshop, to ensure the real high quality and best performance;
2, Riding comfort: We designed the seat by ourselves and choose the car supplier to make, we choosed the Honda shock supplier for our ATV models except Space1 KD70;
3, Steering performance: agility and easy to operate
4, Small shaking: We tested our bike with long period and with our accurate design, to let the engine match our frame very well.
5, Warranty: We give 1 year warranty for our ATV models main parts (engine, braking systems, linkages ,frame and suspension)
