Specifications
Certification: |
CE |
Displacement: |
200CC |
Transmission Type: |
Automatic |
Structure: |
Two Side Doors |
Engine Type: |
4 Stroke |
Transmission System: |
Chain Drive |
Product Description

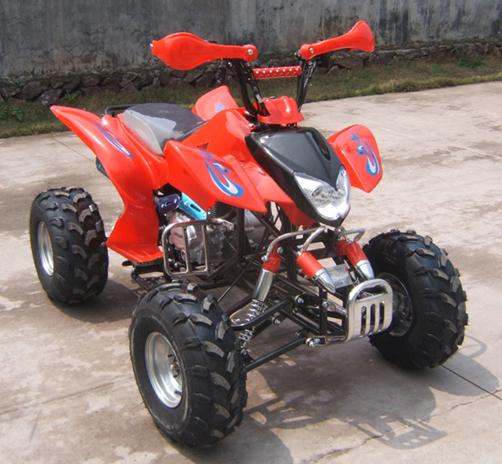

FW-ATV-007
150cc/200cc ATV
features:
1) Engine type: single cylinder, water-cooling, 4 stroke
2) Displacement: 150/200cc
3) Start mode: electric
4) Power: 12.5kW / 8,000rpm
5) Max. torque: 15N.m / 6,000rpm
6) Transmission mode: chain
7) Brake system: drum/disc
8) Tank capacity: 4.5L
9) Tire type: front 19 x 7-8, rear 18 x 9.5-8
10) Parking security: mechanical lock
11) Battery: 12V, 9Ah
12) Transmission: 3 speed with reverse, semi-automatic
13) Ignition type: C.D.I.
14) Load capacity: 150kg
15) Max. speed: ≥60km/h
16) N.W.: 165kg
Outer packing:
Carton size: 148.5 x 83.5 x 77cm
Conveyance:
Qty/20' GP: 29pcs
Qty/40'GP: 64pcs
Qty/40' HQ: 66pcs
