Golden Motor Brushless Electric Wheelchair

Golden Motor Brushless Electric Wheelchair
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T

Specifications

Prod Model: ET-08F22
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wheel Size: 8" Rear Wheel
Motor Type: Brushless Hub Motor
Controller: Brushless Joystic Controller
Max Load Weight: 150kgs
Wheelchair: <30kgs
Life: 8 Years More
Battery: 24V 15ah Best Quality LiFePO4
Mileage: 28 Km (18 Miles)
Weight With Battery: 30.7kgs
L*W*H: 80cm*65cm*35cm
Climbing Capability: 12??
Certification: CE
Folded: Folded
Voltage: 24V
Load Capacity: 150kgs
Accessories: LiFePO4 24V 15ah Battery
Power: 360W 500W
Charging Time: 3h

Product Description

Golden Motor e-Throne Folding Wheelchairs

Special Features:


1. Light weight - <30 Kg
2. Quickest Foldable - easy folding/unfolding in a second
3. Longer travel mileage: over 28 Km (18 miles)
4. Back rest tilting - 5 inclinable angles
5. Well designed frame for comfortable riding
6. Support heavy load: max 150 Kg
7. Latest brushless wheelchair drive technology:
l       Save 50% battery
l       10 times longer motor life

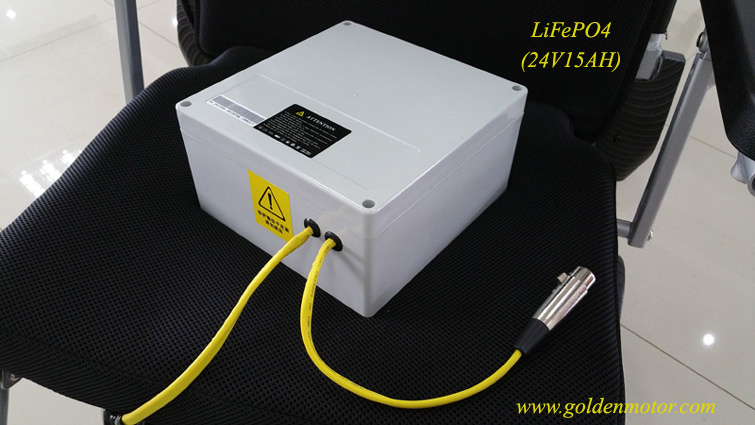

8. Best quality LiFePO4 battery: 24V15AH (4.6 Kg)
l       1000 charging cycles
l       safe, light, reliable
l       pollution free
9. Self upgradeable wheel sizes - 8"/10"/12"
10. Longer warranty period (TBD)

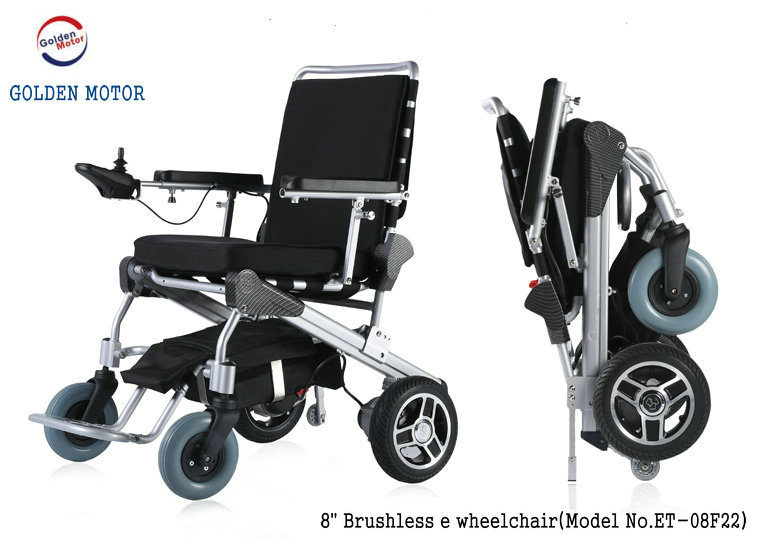

Power electric wheelchair with 8" rear wheel






Folding Power electric wheelchair with 10" rear wheel

Lightest weight Folding Power electric wheelchair with 12" rear wheel



Here are the detail features for three models of new "e-throne" wheelchair(8"10"12" rear wheel)


 Parameter

e-throne 8''10''

e-Throne 12''

Device Weight:(with battery):

29kg(24V10AH battery );30.7kg(24V15AH battery)

31kg(24V10AH battery );32.7kg(24V15AH battery)

Device Weight(without battery)

26kg

28kg

Folded Dimensions:(L x W H):

80cm*65cm*35cm

80cm*68cm*35cm

Unfolded Dimensions

100cm*65cm*95cm

100cm*68cm*96cm

Packing Dimensions:

72cm*40cm*90cm

Seat Dimensions:(L x W)

42cm*45cm

Seat Height: (from ground)

50cm

52cm

Arm Rest Height:(from ground)

68cm

70cm

Turning Radius:

120cm

Ground Clearance:

10cm

Front Wheels:(Diameter x Width)

6''*5cm

8''*5cm

Rear Wheels:(Diameter x Width)

8''*5cm

12''*6.5cm

Wheelbase:

48CM

45CM

Tread:

60CM

65CM

Tyre Type:

PU filled tire

Wheel Material:

Rubber

Pedal(L*W):

32cm*13cm

Motor Type:

24V180W brushless hub motor

24V250W brushless hub motor

Battery:

24v10ah Li-on battery:2.6kg 14cm*16cm*7cm

24v15ah Li-on battery:4.7kg 19cm*19.5cm*10.5cm

Charging cycle >1000times

Charger:( output and input)

Out put:24V

Input:220V

Brake Type:

Electromagnetic brake

Controller :

IM-50B brushless joystic controller

Max output current:10A

Continuous working current:3A

Maximum Speed

4MPH

Max Capacity

200KG

Distance on Full Battery:

20KM(24V10AH)

35km(24V15AH)

Climbing ability:

Slope capacity


A :Customer's Experience about this innovative folding wheelchair







It is extremely convenient due to its compact size and ability to be folded for transport in just about any vehicle: a Car, Truck, SUV. It is also convenient enough to take on an Train, Bus, Cruise Ship or Airplane. The chair can go just about anywhere - Indoors or Outdoors.



"I just recently purchased a E Throne wheelchair and with the batteries arriving Tuesday I have been using it for the last 2 days. I have to congratulate Golden Motors on the design of this chair. It is brilliant in the way it folds so easily, so small and light, perfect for travel and strong enough for many everyday uses. You can say that I am a very pleased customer." -- Greg Burge, USA



The Wheelchair is easy to fold & extremely convenient for traveling in any type of vehicle whether it's a Car, Truck, SUV, Taxi, Bus, Train, Cruise Ship or Airplane.



The Wheelchair easily folds up and stores in any car trunk and you will never need to buy an expensive lift for your car and go through the trouble of having it installed.

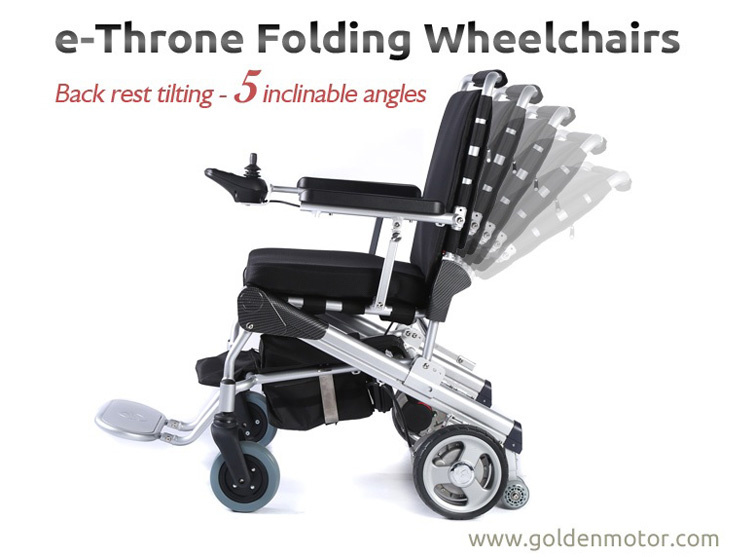

Back rest tilting - 5 inclinable angles







Packaging & Shipping

  Carton size : 80cm*65cm*35cm /CTN

 Term of delivery : FOB,CFR,CIF,DDU

 Way of delivery: BY SEA ,BY EXPRESS ,BY AIR

 delivery time: Sample with in 7days by express









Our Services



1.Reply your inquiry in 24 working hours.

2.Customized design is available.OEM & ODM are welcomed.

3.Professional engineers & Exclusive and unique solution.

4.Well-trained staffs.

Warranty



We warrant that this product shall be free from defects in material or workmanship for 1 year from the date of purchase.The warranty of the battery is 1year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
