Home Golden Motor Technology Co., Ltd. Golden Motor 2015 Lightest Power Wheelchair with 24V 15ah Lithim Battery

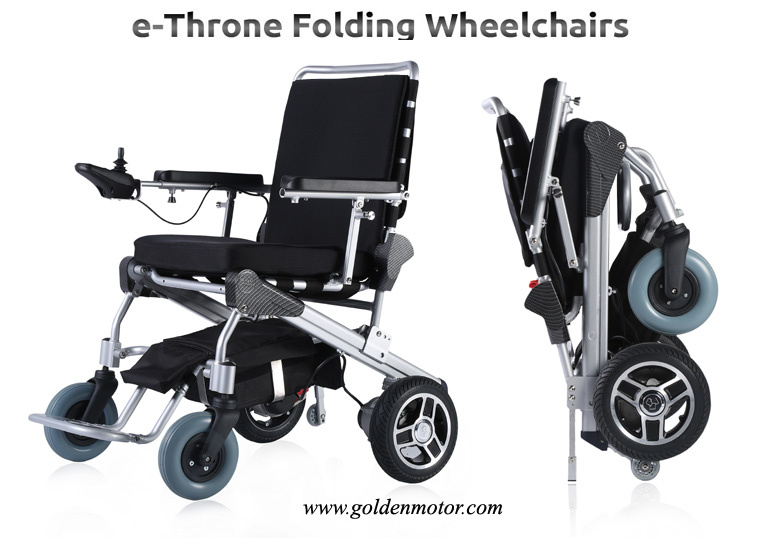

Golden Motor 2015 Lightest Power Wheelchair with 24V 15ah Lithim Battery
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | e-throne |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Size: | 8" Rear Wheel |
| Climbing Capability: | 12?? |
| Folded: | Folded |
| Voltage: | 24V |
| Load Capacity: | 150kgs |
| Power: | 360W |
| Charging Time: | 3h |
Product Description
Golden Motor " e-throne" power electric wheelchair break througn brushless wheelchair drives technology.
l High efficiency brushless hub motor
l Brushless joystick controller
l 50% battery saving
l 10 times longer working life
Best quality LiFePO4 battery: 24V15AH (4.6 Kg)
l 1000 charging cycles
l safe, light, reliable
l pollution free
Here are the detail features for three models of new "e-throne" wheelchair(8"10"12" rear wheel)
Parameter | e-throne 8''10'' | e-Throne 12'' |
Device Weight:(with battery): | 29kg(24V10AH battery );30.7kg(24V15AH battery) | 31kg(24V10AH battery );32.7kg(24V15AH battery) |
Device Weight(without battery) | 26kg | 28kg |
Folded Dimensions:(L x W H): | 80cm*65cm*35cm | 80cm*68cm*35cm |
Unfolded Dimensions | 100cm*65cm*95cm | 100cm*68cm*96cm |
Packing Dimensions: | 72cm*40cm*90cm | |
Seat Dimensions:(L x W) | 42cm*45cm | |
Seat Height: (from ground) | 50cm | 52cm |
Arm Rest Height:(from ground) | 68cm | 70cm |
Turning Radius: | 120cm | |
Ground Clearance: | 10cm | |
Front Wheels:(Diameter x Width) | 6''*5cm | 8''*5cm |
Rear Wheels:(Diameter x Width) | 8''*5cm | 12''*6.5cm |
Wheelbase: | 48CM | 45CM |
Tread: | 60CM | 65CM |
Tyre Type: | PU filled tire | |
Wheel Material: | Rubber | |
Pedal(L*W): | 32cm*13cm | |
Motor Type: | 24V180W brushless hub motor | 24V250W brushless hub motor |
Battery: | 24v10ah Li-on battery:2.6kg 14cm*16cm*7cm 24v15ah Li-on battery:4.7kg 19cm*19.5cm*10.5cm Charging cycle >1000times | |
Charger:( output and input) | Out put:24V Input:220V | |
Brake Type: | Electromagnetic brake | |
Controller : | IM-50B brushless joystic controller Max output current:10A Continuous working current:3A | |
Maximum Speed | 4MPH | |
Max Capacity | 200KG | |
Distance on Full Battery: | 20KM(24V10AH) 35km(24V15AH) | |
Climbing ability: | 6° | |
Slope capacity | 9° | |
A :Customer's Experience about this innovative folding wheelchair
It is extremely convenient due to its compact size and ability to be folded for transport in just about any vehicle: a Car, Truck, SUV. It is also convenient enough to take on an Train, Bus, Cruise Ship or Airplane. The chair can go just about anywhere - Indoors or Outdoors.
"I just recently purchased a E Throne wheelchair and with the batteries arriving Tuesday I have been using it for the last 2 days. I have to congratulate Golden Motors on the design of this chair. It is brilliant in the way it folds so easily, so small and light, perfect for travel and strong enough for many everyday uses. You can say that I am a very pleased customer." -- Greg Burge, USA
The Wheelchair is easy to fold & extremely convenient for traveling in any type of vehicle whether it's a Car, Truck, SUV, Taxi, Bus, Train, Cruise Ship or Airplane.
The Wheelchair easily folds up and stores in any car trunk and you will never need to buy an expensive lift for your car and go through the trouble of having it installed.
Back rest tilting - 5 inclinable angles
Packaging & Shipping
Carton size : 80cm*65cm*35cm /CTN
Term of delivery : FOB,CFR,CIF,DDU
Way of delivery: BY SEA ,BY EXPRESS ,BY AIR
delivery time: Sample with in 7days
Our Services
1.Reply your inquiry in 24 working hours.
2.Customized design is available.OEM & ODM are welcomed.
3.Professional engineers & Exclusive and unique solution.
4.Well-trained staffs.
Warranty
We warrant that this product shall be free from defects in material or workmanship for 1 year from the date of purchase.The warranty of the battery is 1year from the date of purchase.This warranty does not apply to any product that has been subject to misuse,abuse,negligence or neglect.Defects caused by tempering ,alterations and /or repairs are not covered by this warranty.
