Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Start-up: | Electric |
| Transmission: | Chain |
| Displacement: | 150CC |
Product Description

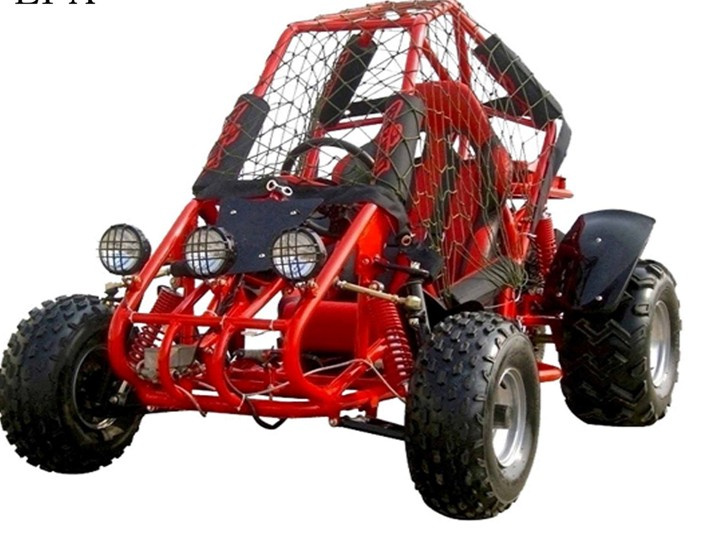

GO KART (GK-6150)| Quantity | price | notice |
|
Engine availiable: 150cc Certificate: CARB EPA CE |
||
| 30pcs/40HQ container |
| S P E C I F I C A T I O N S | |
| Engine: | 150CC CY-6 4-stroke |
| Max. speed: | 60km/h |
| Ignition: | CDI |
| Start method: | electric start |
| Transmission: | Chain drive |
| Tire: | a) Front: 19*7.00-8 b) Rear: 22*11-10 |
| Brake: | a) Front: disc brake(foot) b) Rear: disc brake(foot) |
| Bore x stroke: | 57.4x 57.8mm |
| Max. power: | 6.0kW / 7, 500r/min |
| Max. Torque: | 8.0N. m / 6, 500r/min |
| Compression ratio: | 9.2: 1 |
| Wheelbase | 1, 525mm |
| Ground clearance | 178mm |
| Max load | 70kg |
| Full tank | 10L |
| Packing size: | 2204x1283x1677mm |
| Product Feature |
| engine: 150 cc, 4- stroke, water-cooled, cy-6 |
| The wheel hub: iron. |
| The front tire: 8 inches, the rear: 10 inches; starting method: electric start. Transmission: chain. |
| the front/ rear wheel: disc brake |
| the front suspension: 350mm, the rear suspension: 350 mm. |
