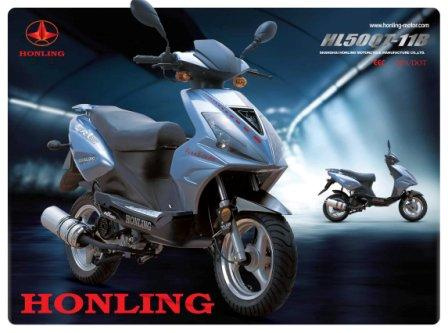

Gas Scooter (HL50QT-11B)

Specifications

Prod Model:	HL50QT-11B

Product Description

1Dimension(mm): 1800*700*1120
Engine type: 4-stroke,1-Cylinder air-cooling
Cylinder Number HL139QBM
Bore*Stroke(mm): 41.4*39.0
Compression Ratio: 10.5:1
Maximum horsepower(kw/r/min): 5.6/7500
Displacement: 49.5cc
Starting method: Electric/Kick starter
Lubrication way: Pressure & Splash
Igniting method C.D.I
Max.Speed(km/h): 50
Wheel base(mm): 1250mm
Loaded weight: 75kg

Dry weight(kg): 90kg
Kind of brake: F.disk R.drum/ F.drum R.drum
Brake operation F.hand.R.hand/F.hand xxxxx
Front wheel: 120/70-12
Rear wheel: 120/70-12
Fuel capacity(L): 5.0
Oil Consumption(L/km/h): 2.0/100
Front/Rear absorber: Inner spring, absorb shook hydraulic, cushion
Battery: 12V 7Ah
Front headlight: 12V 25W
Front/Rear Position light: 12V 5W
Brake light: 12V 21W
Front/Rear turning light: 12V 10W
Clutching method: automatic
Color: Optional

Conveyance:
24pcs/20'GP, 50pcs/40'GP, 84pcs/40'HQ

Parking:
Standard Export carton
