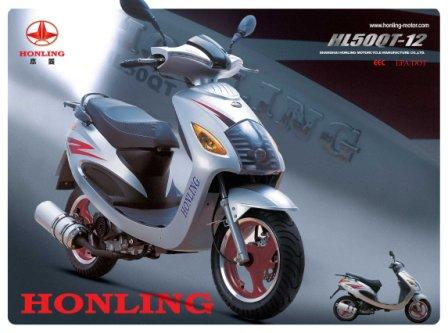

Gas Scooter (HL50QQT-12(A))

Specifications

Prod Model:	HL50QT-12(A)

Product Description

Engine type: 4-stroke, air-cooling
Cylinder: 1-cylinder
Cylinder Number: 139QMB
Bore*Stroke(mm): 41.4*39.0
Compression Ratio: 10.5:1
Maximum horsepower(kW/r/min): 2.3/7500
Displacement: 49.5cc
Starting method: Electric/Kick starter
Lubrication way: Pressure & Splash
Igniting method: C.D.I
Dimension(mm): 1800*650*1100
Wheel base(mm): 1350mm
Loaded weight: 75kg
Dry weight(kg): 90kg
Kind of brake: F. Disk R. Drum/ F. Drum R. Drum
Brake operation F. Hand. R. Hand/F. Hand R. Foot
Front wheel: 120/70-12
Rear wheel: 120/70-12.
Fuel capacity(L): 5.0
Oil Consumption(L/km/h): 2.0/100
Front absorber: Inner spring, absorb shook hydraulic, cushion
Rear absorber: Inner spring, absorb shook hydraulic, cushion
Battery: 12V 7Ah
Front headlight: 12V 35W
Front/Rear Position light: 12V 5W
Brake light: 12V 21W
Front/Rear turning light: 12V 10W
Clutching method: automatic
Color: Optional
