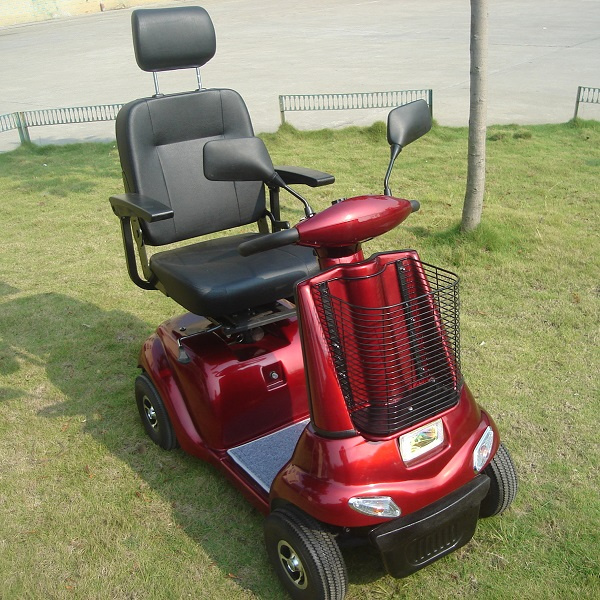

Four Wheel Handicapped Electric Mobility Scooter (DL24500-2)
| Price: | US $ 700-900/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | DL24500-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | 1250*610*1280mm |
| Max. Climbing Ability (Loaded): | 20% |
| Passenger Capacity: | 1 |
| Chassis: | Steel |
| Gross Weight: | 128kg |
| Motor: | Brush |
| Brake: | Front V-brake / Rear Drum Brake |
| Battery Type: | Lead-acid Battery |
| Frame Material: | Steel |
| Voltage Of Battery: | 24V |
| Certification: | CE |
| Maximum Loading Capacity: | ≥120kg |
| Wheel Hub: | Alloy Hubs |
| Folded: | Folded |
| Charging Time: | 6-8h |
| Part: | Motor |
| Running Distance: | 40km |
| Max Speed: | 10km/H |
| Power: | 500W |
| Wheel Size: | 200*50 |
Product Description
four wheel handicapped electric mobility scooter (DL24500-2)electric mobility scooter features:
1. Standard color: Burgundy, Red, Black; Sunshade, Raincover, Walking stick holder, Drink Holder for option;
2. Curtis Controller ; Electric brake ;Light system is the standard;
3. Easy to operate to move forward and backward;
4. Adjustable seat and can be folded;
5. Well design of the package, so the goods can be protected well;
6. Has CE certificate for whole carts and for main parts also pass CE, UL,SAA for different carts.
electric mobility scooter specification:
| Model | DL24500-2 |
| Passenger Capacity | 1 |
| Power supply | |
| Battery | 12V45AH*2 |
| Motor | 24V500W |
| Controller | PG,i24-70 |
| Charger | 24V5A |
| Performance | |
| Max. Speed | 10KM/H |
| Max.travelling range | 40 |
| Climbing capactity | 20% |
| Brake Range | <=3 |
| Minmum turning radius | <=2.5 |
| Gross Weight | 128KG |
| Carrying capacity | 120KG |
| Dimension | |
| Tyre | 4.10/3.50-4 |
| Normal dimensions | 1250*610*1280MM |
| Folded dimensions | 1250*610*820MM |
| Carton dimensions | 1320*730*870MM |
| Qty per container | 24PCS/54PCS/81PCS |
| Optional parts | Rear basket, walking stick bracket, Weather enclosure |
Marshell electric vehicles company profiles:
Marshell was founded in 2002, it is a world-class electric vehicle designer and manufacturer in China. Our main products are golf car, golf trolley, sightseeing car, e-scooter, utility vehicles and so on. All items are CE certified.
We have three facilities in Guangdong and Shanghai, with 210000 square meters workshops and 800 workers. Our daily production capacity is 100 units of big vehicles and 500 units of scooters.
Marshell has been recognized by ISO9001/ISO14001, all items are CE certified. Marshell is also the first one who got European EEC certificate in China. Moreover, every vehicle is marked with World Manufacturer Identifier (WMI) and VIN.
Please inquiry me for more details.
