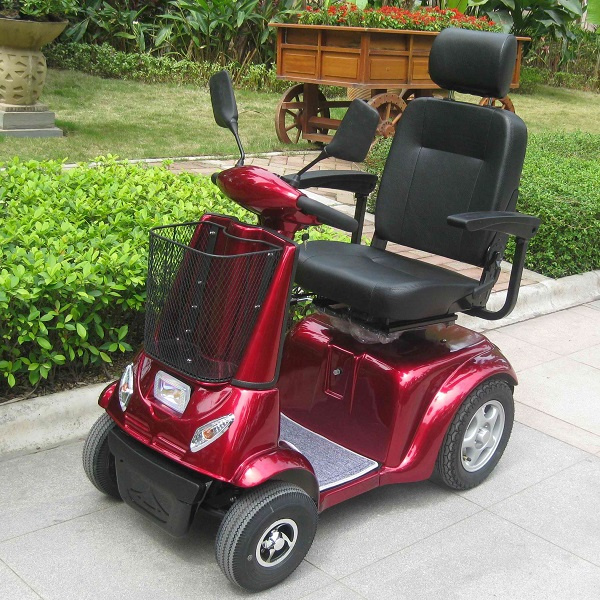

Marshell 800W Four Wheel Electric Mobility Scooter (DL24800-3)
| Price: | US $ 800-1000/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | DL24800-3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | 1210*620*1280mm |
| Turning Radius: | 2.5 M |
| Carrying Capacity: | 130 Kgs |
| Chassis: | Steel |
| Gross Weight: | 135kg |
| Battery: | 12V45ah*2 |
| Controller: | Pg, 24V 120A |
| Charger: | 12V5a |
| Climbing: | 20% |
| Qty Per Container: | 24PCS/54PCS/81PCS |
| Running Distance: | <45KM |
| Motor: | Brush |
| Brake: | Front V-brake / Rear Drum Brake |
| Max Speed: | <20km/h |
| Battery Type: | Lead-acid Battery |
| Frame Material: | Steel |
| Voltage Of Battery: | 24V |
| Power: | 501-800W |
| Certification: | ISO |
| Maximum Loading Capacity: | ≥120kg |
| Wheel Hub: | Alloy Hubs |
| Folded: | Folded |
| Charging Time: | 6-8h |
| Part: | Charger |
Product Description
Marshell 800W Four Wheel Electric Mobility Scooter (DL24800-3)
electric mobility scooter features:
- Option parts: Sunshade, Rain Cover, Walking stick holder, Drink holder.
- Well design of the package, so the goods can be protected well.
- Speed can be adjusted.
- Good aftersale-service, as most parts are manufactured by ourselves.
- Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts.
- Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA).
- Smart steering system, easy to make forward and backward.
- Good climbing ablity and can park easily on Hills.
electric mobility scooter specifications:
| Model | DL24800-3 |
| Passenger Capacity | 1 |
| Power supply | |
| Battery | 12V45AH*2 |
| Motor | 24V800W |
| Controller | PG, 24V120A |
| Charger | 12V5A |
| Performance | |
| Max. Speed | 14KM/H |
| Max.travelling range | 40 |
| Climbing capactity | 20% |
| Brake Range | 6 |
| Minmum turning radius | 2.5 |
| Gross Weight | 135KG |
| Carrying capacity | 130KG |
| Dimension | |
| Tyre | 4.1''/3.5-4'';3.0-8'' |
| Normal dimensions | 1210*620*1280MM |
| Folded dimensions | 1210*620*830MM |
| Carton dimensions | 1320*720*860MM |
| Qty per container | 24PCS/54PCS/81PCS |
| Optional parts | Rear basket, walking stick bracket, Weather enclosure |
