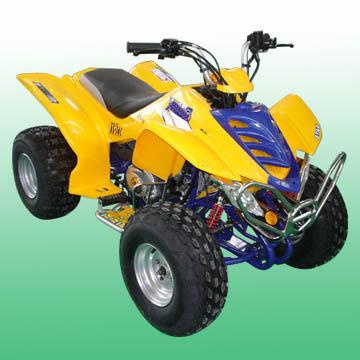

Four-stroke ATV (GATV110-II)

Specifications

Prod Model:	GATV110-II

Product Description

L x W x H: 1, 550 x 920 x 980mm
Wheelbase: 1, 030mm
Engine type: single cylinder, air-cooling, four-stroke
Start mode: electric
Power: 4. 6Kw/7, 500r/min
Max torque: 6. 5N. m/6, 500r/min
Max speed: >=40km/h
Mini ground clearance: 100mm
Dry weight: 130kg
Transmission mode: chain
Break type (F/R): type of hydraulic pressure after the previous drum
Climb degree: >=15 degree
Tank capacity: 6.6L
Specification of tire:
Front-wheel drive: 19 x 7-8
Rear wheel: 18 x 9.50-8
Displacement: 106.7ml
Shift gear: three gear with reverse gear, automatic
Ignition mode: C.D.I
Loading capacity: 125kg
Engine oil: 0.9L
Packing dimensions: 1, 485 x 835 x 740mm
