FDA 10 Inch Light Weight Brushlesss Foldable Electric Wheelchair
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal |
Specifications
| Prod Model: | e-Throne |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame: | Aluminum Alloy |
| Battery: | LFP24V15ah with Charger |
| Max Speed: | 4mph |
| Range: | 28km |
| Slope: | 15% |
| Brake Type: | Electromagnetic Brake |
| Folding Time: | 1 Second |
| Back Rest Tilting: | 5 Inclinable Angles |
| Weight: | Less Than 30kg |
| Load Capacity: | >200kg |
| Certification: | CE |
| Folded: | Folded |
| Voltage: | 24V |
| Climbing Capability: | 15% |
| Power: | 180W/250W |
| Charging Time: | 3h |
Product Description

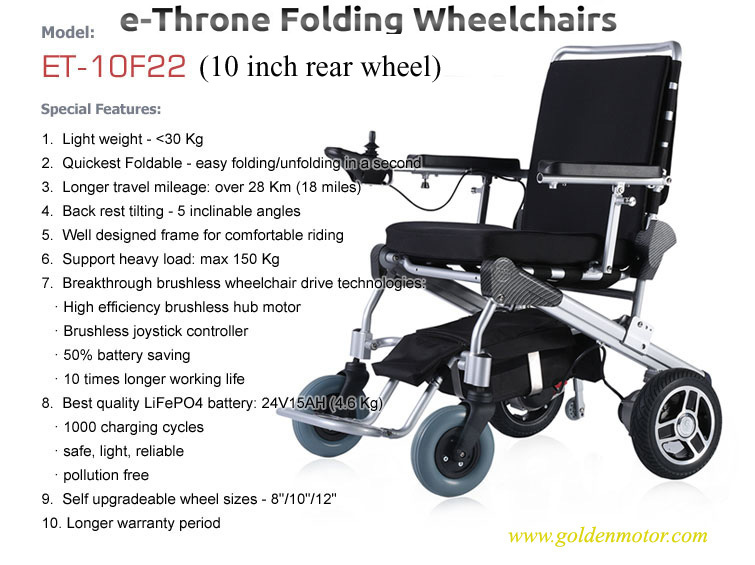

FDA 10 inch Light Weight Brushlesss Foldable Electric Wheelchair1. Light weight - <30 Kg
2. Quickest Foldable - easy folding/unfolding in 1 second
3. Longer travel mileage: over 28 Km (18 miles)
4. Back rest tilting - 5 inclinable angles
5. Well designed frame for comfortable riding
6. Support heavy load: max 150 Kg
7. Breakthrough brushless wheelchair drive technology:
High efficiency brushless hub motor
Brushless joystick controller
50% battery saving
10 times longer working life
8. Best quality LiFePO4 battery: 24V15AH (4.6 Kg)
1,000 charging cycles
safe, light, reliable
pollution free
9. Self upgradeable wheel sizes - 8"/10"/12"
e-Throne: Redefinition of Electric Wheelchair Technologies
Top Quality Workmanship, Comfortable Riding Experience Guaranteed!
Super Light, Quickest Folding/Unfolding, Inclineable Back, Sturdy Aluminium Frame,
50% Battery Saving, 28km Travel Range, 10x Longer Motor Life, Maintenance Free ......
Parameter | e-throne 8''10'' | e-Throne 12'' |
| Device Weight:(with battery): | 29kg(24V10AH battery );30.7kg(24V15AH battery) | 31kg(24V10AH battery );32.7kg(24V15AH battery) |
| Device Weight(without battery) | 26kg | 28kg |
| Folded Dimensions:(L x W H): | 80cm*65cm*35cm | 80cm*68cm*35cm |
| Unfolded Dimensions | 100cm*65cm*95cm | 100cm*68cm*96cm |
| Packing Dimensions: | 72cm*40cm*90cm | |
| Seat Dimensions:(L x W) | 42cm*45cm | |
| Seat Height: (from ground) | 50cm | 52cm |
| Arm Rest Height:(from ground) | 68cm | 70cm |
| Turning Radius: | 120cm | |
| Ground Clearance: | 10cm | |
| Front Wheels:(Diameter x Width) | 6''*5cm | 8''*5cm |
| Rear Wheels:(Diameter x Width) | 8''*5cm | 12''*6.5cm |
| Wheelbase: | 48CM | 45CM |
| Tread: | 60CM | 65CM |
| Tyre Type: | PU filled tire | |
| Wheel Material: | Rubber | |
| Pedal(L*W): | 32cm*13cm | |
| Motor Type: | 24V180W brushless hub motor | 24V250W brushless hub motor |
| Battery: | 24v10ah Li-on battery:2.6kg 14cm*16cm*7cm 24v15ah Li-on battery:4.7kg 19cm*19.5cm*10.5cm Charging cycle >1000times | |
Charger:( output and input) | Out put:24V Input:220V | |
Brake Type: | Electromagnetic brake | |
| Controller : | IM-50B brushless joystic controller Max output current:10A Continuous working current:3A | |
Maximum Speed | 4MPH | |
| Max Capacity | 200KG | |
| Distance on Full Battery: | 20KM(24V10AH) 35km(24V15AH) | |
Climbing ability: | 6° | |
| Slope capacity | 9° | |
