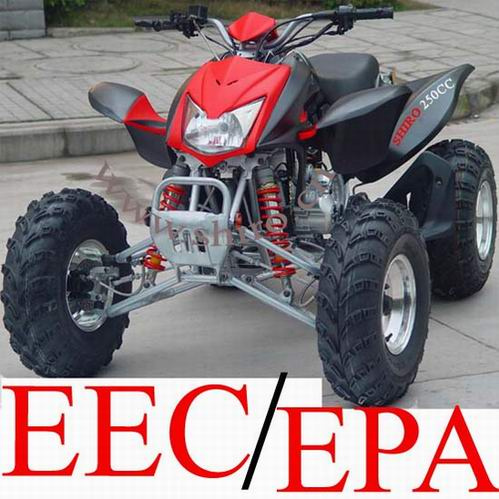

EPA /EEC 250 ATV (SR-250F)

Specifications

Prod Model:	SR-ATV250F

Product Description

ATV, EPA EEC 250ATV
Model NO.: SR-ATV250F

A)Honda Imitation With Motional Exterior
B)High - Strength Framework
C)Absorber From Racing Motorcycles;
D)Low Speed, Large Torque, Liquid-Cooled Special Engine For Atv;
E)High Performance, Adapted And Tested By Professional Competitions

Structure
Braking System: Front/Rear Hydraulic Brake
Transmission: Chain, Rear Driving
Front Wheel Type: At23/7-10
Rear Wheel Type: At22/10-10
Seat Height(Mm): 830
Min Turning Radius(Mm): 2700
Min Ground Clearance(Mm): 175
Oil Case Capacity(L): 9. 8
Locking System: Mechanical Lock
Battery: 12v14ah
Max Loading Ability(Kg): 150
Seat Number: 1person
Fuel Consume(L/100km): 5
Axle Base(Mm): 1260
Front Wheel Base(Mm): 870
Rear Wheel Base(Mm): 930
Max Velocity (Km/H): 90
Max Climbing Degree: 60
Measurement(Mm): 1880*1140*1120

Engine
Type: Single Cylinder\4 Stroke\Reverse Inside
Max Power(Kw/R/Min): 12 / 6500
Max Torque(N. M/R/Min): 18. 5/ 5500
Cylinder Radius*Space: 67*65
Displacement(Ml): 230
Compress Rate: 9. 0/1

Lubricate Pressure&Splash Lubricate
Ignition: C. D. I
Gear Shaft: 4 Gear/1 Reverse, Neutral
Clutch: Manual Wet Multi-Piece
Reverse: Reverse Inside
Starting Electric Starting
Cool: Air Cooled
Packing
Packing Type: Plastic Bag+Ferric Bracket+Paper Case
Packing Quantity(20gq/40gq/40hq): 12/28/42
Knockd-Down Parts Rear Elbow, Tyre
Packing Met(Mm): 1680*960*880
G. W(Kg): 218
N. W(Kg): 180
