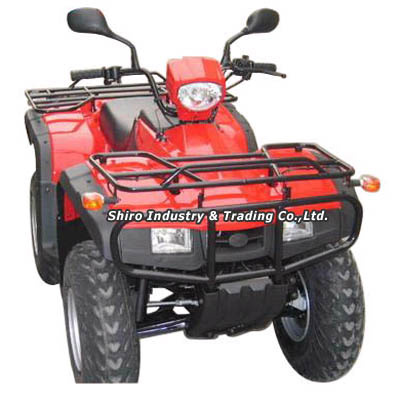

ATV-Quad 250cc EEC (SR-ATV250D)

Specifications

Prod Model:	SR-ATV250D

Product Description

All Terrain Vehicles/ATV/Quad 250cc EEC
Model NO.: SR-ATV250D (EEC)

Engine Type: 4-Strokes, Air Cooled, Single Cylinder
Starting System: Electric/recoil backup
Piston Displacement: 229. 6
Ignition Type: C. D. I
Fuel Tank Capacity(L): 12
Compression Ration: 8. 7: 1
Bore x Stroke(mm): 71*58
Maximum Power(kw/r/min): 10/6000-7000
Maximum Torque(N. m. /r/min): 15/5500-6500
Transmission System: Shaft Drive
Transmission: 5 Speeds, semi-automatic
Seat Height(mm): 810± ± 20
Min Turning Radius(mm): 2900
Ground Clearance: 155
Brake(Front/Rear): Disc/Drum
Tyre Fromt: AT23*7-10
Tyre, Rear: AT22*10-10
Front Suspension: Independent front suspension
Rear Suspension: Swing arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 165
Engine Oil Capacity(L): 1. 6
Gear Oil Capacity(L): 0. 27
Dry Weight(kg): 234
Rider Capacity: 2 Person
Wheel Base: 1160
Lubrication: Pressuring splash
Overall Height(mm): 1160
Overall Length(mm): 1940
Overall Width(mm): 1050
Packing size: 1980*1120*870mm
