Specifications
Prod Model: |

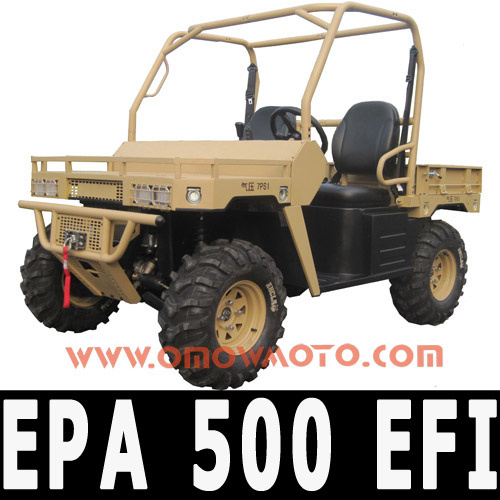

UTV500-C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
ENGINE
Type: 500CC, liquid-cooled, single cylinder
Carburate: EFI
Starting: Electric and recoil starter
Maximum Power: 32HP (Limited 20.4HP for Europe)
Max speed: 70km/h
Transmission: C. V. T Automatic clutch (R/N/L/H)
Drive: Shaft drive, 2x4 & 4x4 switchable, front-differential
Fuel Capacity: 35L
DETAILS
Suspension: 4-wheel independent suspension
Brakes: Front & rear disc brake
Tires: Front: 26*11-12
Rear: 26*11-12
Wheelbase: 1840mm
Ground Clearance: 330mm
DIMENSIONS
Oversize size: 2730*1460*1880mm
Carton Size: 2320*1600*1150mm
G. W / N. W: 720KGS / 640KGS
Front rack capacity: 80KGS
Rear rack capacity: 220KGS
Front rack loading size: 1, 460X600MM
Rear rack loading size: 1, 460X800MM
CONTAINER CAPABILITY
20 FT CONTAINER: 6 PCS
40 HQ CONTAINER: 16 PCS
