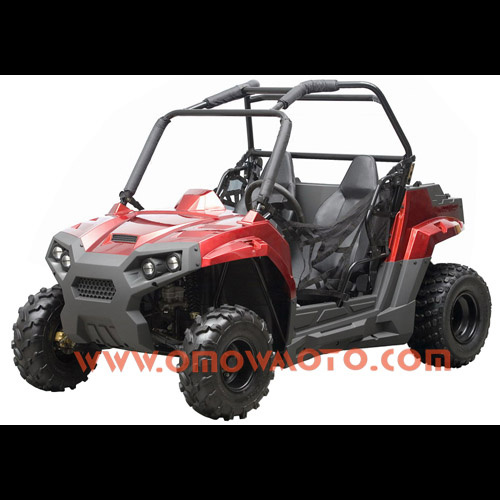

EEC 150CC 4x2 Road Legal UTV

Specifications

Prod Model:	UTV150-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

ENGINE
Certification: EPA &EEC approved
Engine type: 4-stroke, Single-Cylinder, Air/Oil-cooled
Displacement: 149.6CC
Max. Power: 6.0kw(7500r/min) 8.2HP
Valve Configuration: OHV
Compression ratio: 9.0: 1
FUEL SYSTEM
Fuel Delivery System: Fuel Pump Carburetor
Choke System: Automatic
Fuel capacity: 9.5L (2.1 Gallon)
DRIVETRAIN
Driveline Type: 2 x 4
Final Drive: Chain-drive
Transmission: Constantly Variable Transmission
Gear Selection: Forward & Reverse Single Speed
ELECTRICAL SYSTEM
Forward Lights: Headlights-High & Low Beam
Rear Lights: Brake Lights & Left/Right Signal lights
Starting system: Electric start
Ignition system: C. D. I.
SUSPENSION / BRAKES
Suspension Front: Single A-arm (Double A-arm optional)
Suspension Rear: Dual Shock Swing arm
Brakes Front: Front Dual Hydraulic Disk
Brakes Rear: Rear Single Axle Hydraulic Disk
TIRES
Front Tread: 1020mm ( 40 in)
Rear Tread: 965mm ( 38 in)
Front & Rear tire size: 19x7-8 / 20x10-9
MISC.
FCL Quantity 8 units/20'; 18units/40'; 27 units/40HQ
Warranty: 6 Months
Top speed: 55km/h (34.2 M. P. H. )
Dry weight: 245kg ( 540 lbs. )
Wheelbase: 1650mm (65in)
Vehicle dimension: 2250mm x 1220mm x 1397mm ( 88.6 in x 48 in x 55 in)
Ground clearance: 152mm (6in)
Safety: Driver & Passenger Seat belts/ net restraints.
