Specifications
Prod Model: |
HHD7034 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Battery: |
12V*2 55ah |
Motor: |
800W |
Max.Speed: |
12km/H |
Max.Climbing Capability: |
12° |
Wheel: |
12X4.1`` |
Wheel Hub: |
Aluminum Alloy |
Travel Range: |
40km |
Stainless Steel: |
Available |
Max.Loading Weight: |
205kgs |
Ground Clearance: |
80mm |
Load Capacity: |
100-200kg |
Climbing Capability: |
12?? |
Accessories: |
Seat Belt |
Certification: |
EEC |
Folded: |
Unfolded |
Voltage: |
24V |
Product Description

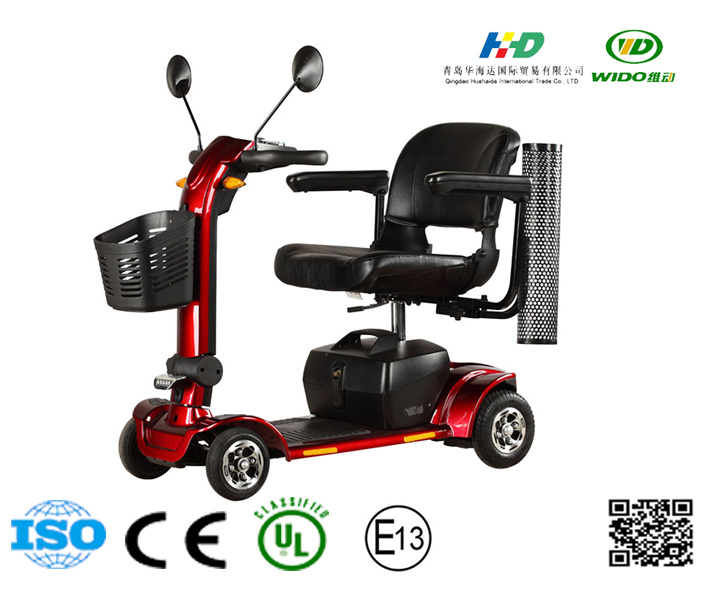

Electric mobility scooter
1)Developed as a middle luxurious scooter
2)it is a cost-effective scooter
3)with assembled luxurious and comfortable seat which back rest can be 180 degree adjusted
4)the front and rear shock absorbers, it makes driving more comfortable
Battery | 12VX2 55AH |
Motor power | 800W |
Controller | PG 120A |
Electric Brake | Warner 24v |
Overall dimensions | 1860×690×1280mm |
Weight w/o battery | 92 kg |
Max. speed (km/h) | 12km/h |
Turning Radius |
|
Max. climbing grade | 15° |
wheel | 12X4.1`` |
Drive System | 24V Sealed Transaxle |
Max. loading weight | 205kg |
Total Weight w/Bat. | 126.3kg |
Ground Clearance | 80mm |
Travel Range | up to 40 KM |
Free Wheeling | Manual Electric |
Wheel Hub | Aluminum Alloy |
Seating | 360° Swivel and Position Adjustment - Foldable seat w/ arm rest and head rest |
Qty/20 | 27pcs |
Qty/40 | 54pcs |
Qty/40HQ | 72pcs |
charger (Included) | 5A |
