Specifications
Prod Model: |
JRWD501 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Electric Wheelchair |
Driving Range: |
15-20km |
Max Speed: |
6km/H |
Battery: |
12V 12ah (20ah) *2PCS (Lead-Acid) |
Motor: |
250W*2PCS (Made in Taiwan) |
Overall Size: |
1170X630X920mm |
Wheel Size: |
Front: 8'', Rear: 12'' |
N.W.: |
43kg |
Seat Size: |
450*430mm |
Climbing Capability: |
8?? |
Load Capacity: |
≤100kg |
Accessories: |
LED Light |
Folded: |
Folded |
Voltage: |
24V |
Certification: |
ISO |

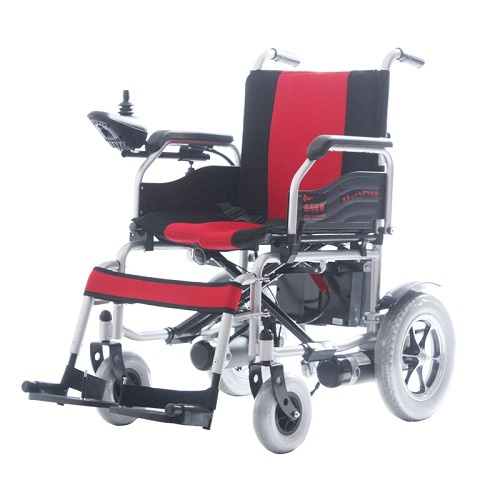

Product Description
This series of power wheelchairs are powered by battery, driven by DC motor. Users control direction and adjust speed by joystick controller. It is suitable for application of low speed, good road condition and small slope.
Driving range: 15-20km
Max speed: 6km/h
N.W.: 43/48.3kg
Overall size: 1170mm*630mm*920mm
Folded width: 310mm
Seat Width: 450(L)x430(W)mm
Loading capacity: 100kg
Front wheel: 8''
Rear wheel: 12''
Motor: DC 250W *2Pcs (made in Taiwan)
Charger: DC 220V, 50HZ, 5A
Battery: 12V 12AH (20AH) *2Pcs
Brakes: full-automatic electromagnetic brakes
Controller: intelligent controller
Certificate: ISO13485; CE (in progress)
Features:
Low centre of gravity, safer for using;
Full-automatic electromagnetic brakes;
Foldable and portable;
Removable battery box for convenient recharging;
Flip-up armrest, adjustable and detachable footrest;
Controller can be exchanged from right side to left side for both hands use;
Rear wheel driven by two motors;
Easy to operate, dismantle and assembling;
One year warranty
