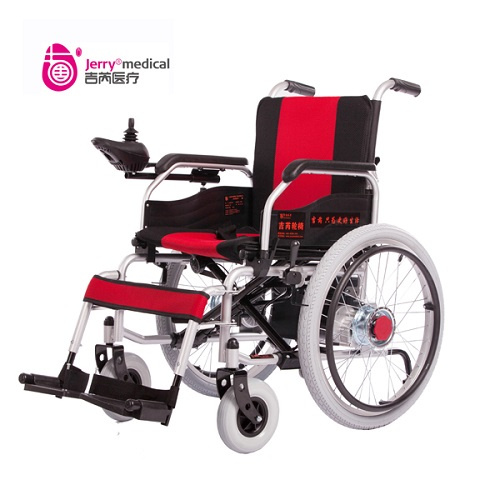

Dual Used Electric Wheelchair

Specifications

Prod Model:	JRWD301
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Electric Wheelchair
Driving Range:	15-20km
Max Speed:	6km/H
Battery:	12V 12ah (20ah) *2PCS
Overall Size:	1080X670X910mm
Wheel Size:	Front: 8'', Rear: 22''
N.W.:	40kg
Climbing Capability:	8??
Load Capacity:	≤100kg
Accessories:	LED Light
Folded:	Folded
Voltage:	24V
Certification:	ISO13485

Product Description

This series of electric wheelchairs are powered by lead-acid battery, driven by domestic DC motor. Users control direction and adjust speed by joystick controller. It is suitable for application of low speed, good road condition and small slope.

As domestic motors don't have electromagnetic brakes, so we add parking hand brakes on two sides of the wheelchair. The parking hand brakes are used for parking the wheelchair steadily when user is going to get off wheelchair on slops. And JRWD301 has big rear wheel, this makes user to operate the electric wheelchair more easily and flexible. What's more, JRWD301 is dual used by users with two operations: manual operation and electric motor-driven operation.

Features:
Optional operation of both manual and electric mode;
Foldable and portable;
Removable battery box for convenient recharging;
Flip-up armrest, adjustable and detachable footrest;
Controller can be exchanged from right side to left side for both hands use;
Rear wheel driven by two motors;
Easy to operate.


Driving range: 15-20km
Max speed: 6km/h
N.W.: 42/47.3kg
Overall size: 1084mm*653mm*913mm
Folded width: 41cm
Seat Width: 45(L)x43(W)cm
Loading capacity: 100kg
Front wheel: 8''
Rear wheel: 22''
Motor: DC 250W *2Pcs
Charger: DC 220V, 50HZ, 5A
Battery: 12V 12AH (20AH) *2Pcs
Brakes: Hand brakes
Controller: intelligent controller
