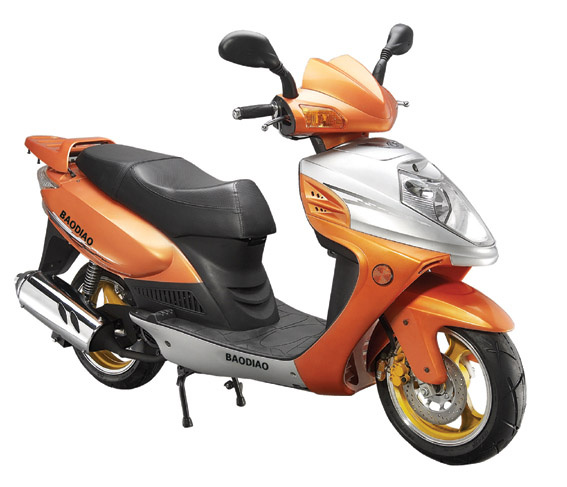

EEC Gas Scooter (BD50QT-2-V)

Specifications

Prod Model:	BD50QT-2-V

Product Description

BD50QT-2-V
(50CC or 125CC or 150CC)
Dimension ((L x W x H) mm): 1890x570x860
Wheel base (mm): 1380
Min. Ground Clearance (mm): 120
Dry Weight: 109kg
Maximum weight capacity: 150kg
Engine Type: Single-cylinder, air-cooled, four-stroke
Engine model: 157QMJ
Bore xStroke: 57.4mm x 57.8mm
Displacement: 150mL
Maximum Power: 7.0kW/rpm(7500+500r/min)
Maximum Torque: 9.0N. M/rpm (7000-500r/min)
Lubrication: Pressure/splash
Start: Electric start/Kick start
Ignition: C. D. I
Max. Speed (km/h): 85
Fuel tank Maximum capacity: 6L
Economical Fuel Consumption (1/100km): 2.2L/100km
Front Type Size and Air Pressure: 130/60-13/225KPa
Rear Type Size and Air Pressure: 120/70-12/250KPa
Front brake type: Disk type
Rear brake type: Drum type
40' HQ: 75 units
