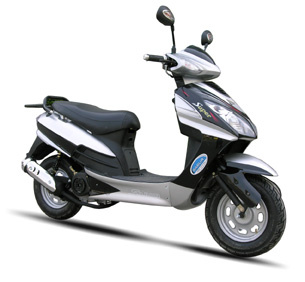

50cc Scooter (BD50QT-4-VII)

Specifications

Prod Model:	BD50QT-4-VII

Product Description

BD50QT-4-VII, 50CC gas scooter
Dimension (L*W*H)mm): 1680*460*860
Wheel base (mm): 1300
Min. Ground Clearance (mm): 110

Dry Weght: 90kg

Maximum weight capacity: 75kg

Engine Type: Single-cylinder, air-cooled, four-stroke

Engine model: 139QMB

Bore*Stroke: 39.0mm*41.5mm

Displacement: 49mL

Maximum Power: 2.3kW/rpm(8000+400 r/min)

Maximum Torque: 2.9N. M/rpm(6000-350r/min)

Lubrication: Pressure/splash

Start: Electric start/Kick start

Ignition: C. D. I

Max. Speed (km/h): 45km/h

Fuel tank Maximum capacity: 5L

Economical Fuel Consumption (l/100km): 1.9L /100km

Front Type Size and Air Pressure: 3.50-10/225KPa

Rear Type Size and Air Pressure: 3.50-10/250Kpa

Front brake type: Drum type

Rear brake type: Drum type

40'HQ: 105 units.
