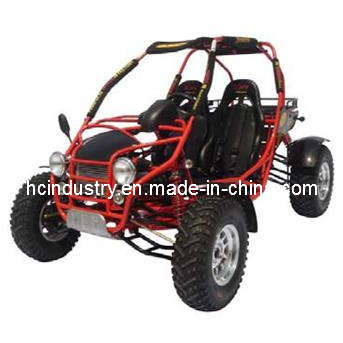

EEC/EPA Hammerhead 400CC Go Kart

Specifications

Prod Model:	hammerhead 400cc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Start-up:	Electric
Transmission:	Shaft
Displacement:	400CC
Certification:	EEC

Product Description

Engine
Type 400cc Yamaha technology engine, 4-stroke, force-air cooling & water-cooling
Displacement 387.4 ml
Bore x Stroke 83 x 71.6 mm
Max. Power 16 Kw/6000~7000 r/min
Max. Torque 26 N. M /5500~6500 r/min
Ignition mode CDI
Starting System Electric-start/hand-pull start
Fuel tank Capacity(Gal/L) 5.30 gallons/20 L 90# petrol
Transmission
Gear shift 5F-N-R, cyclic by foot-kicking
Drive mode Auto-clutch, 2WD, rear wheel drive
Final Drive Shaft drive
Tires & Wheels
Front Wheel Tire 25x8-12" / wheel 12x6 alloy
Rear Wheel Tire 25x10-12" /wheel 12x8 alloy
Frame
Type -heavy gauge -fixture welded 32mm Steel
Finish Powder coated
Suspension
Front Independent Swing-arms
Rear Independent Swing-arms
Length of shock absorber Front: 450mm Rear: 430mm
Brakes
Type Front and rear hydraulic disk brake
Controlled by Foot
Performance
Maximum Speed (Approx) 85km/h
Fuel Consumption (Approx) 30-50 mpg
Terrain Hills, slopes, grass, mud and sand
Special Features
Dual Seat Fingertip slide adjustable
Restraint System Dual 4 point retractable safety belts
Engine Stop Switch/Dual On steering panel
Dimensions
Overall Size (L. X W. X H. ) 2580*1580*1500 mm
Wheelbase 1950mm
Min. Ground Clearance 330mm
Packing size (L. X W. X H. ) 2350 x 1450 x 850mm
Max. Loading capacity 346kg
Net/Gross Weight 398 Kg/430kg
Container conveyance
Q'ty/20'FCL 8 PCS
Q'ty/40'FCL 16 PCS
Q'ty/40'HQ 24 PCS
Certification conditions
EEC/EPA/DOT
